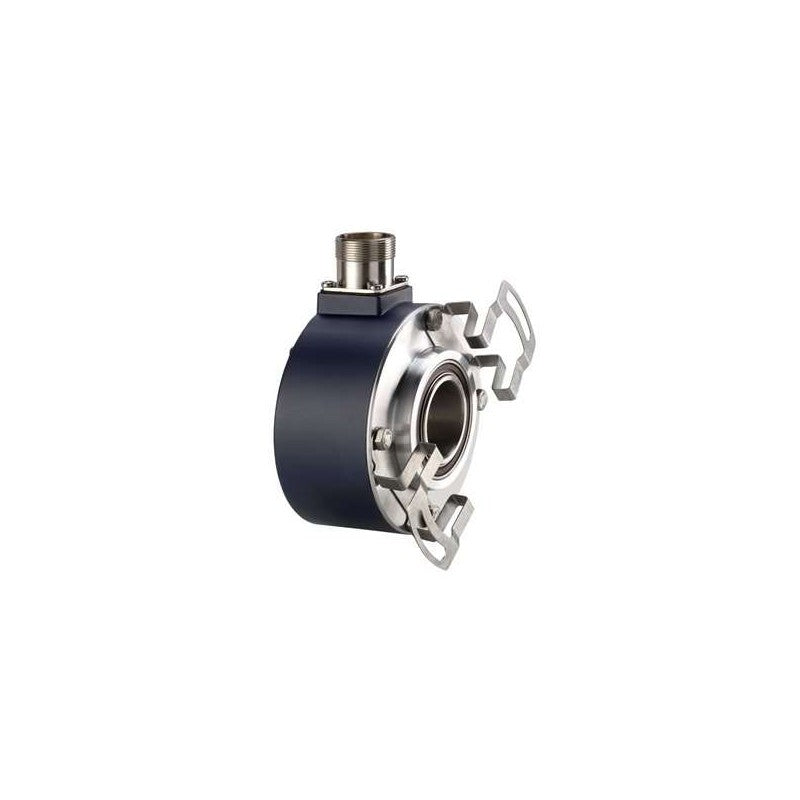

The Schneider Electric XCC1930TS03KN is an incremental encoder designed for precise position feedback in industrial automation systems. As part of the XCC series, this encoder features a through-shaft design suitable for direct mounting on motor shafts or other rotating components. Its robust construction and reliable performance make it a critical component in applications requiring accurate motion control and data acquisition.

Technical details

• Series: XCC
• Encoder Type: Incremental
• Shaft Type: Through Shaft
• Shaft Diameter: 30 mm
• Resolution: 360 Pulses Per Revolution (PPR)
• Output Signal Type: Push-Pull (also known as HTL or Line Driver compatible)
• Connection Type: KN (typically indicates a specific connector type, consult datasheet for details)
• Operating Temperature Range: Consult manufacturer datasheet for specific environmental ratings.

Applications & compatibility

This Schneider Electric incremental encoder is commonly employed in applications such as packaging machinery, material handling systems, robotics, and general industrial automation where precise speed and position monitoring are essential. Its 30mm through-shaft and push-pull output are compatible with a wide range of industrial drives, PLCs, and control systems that accept incremental encoder feedback.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the XCC1930TS03KN or contact our technical team for cross-reference assistance with compatible XCC series components.
