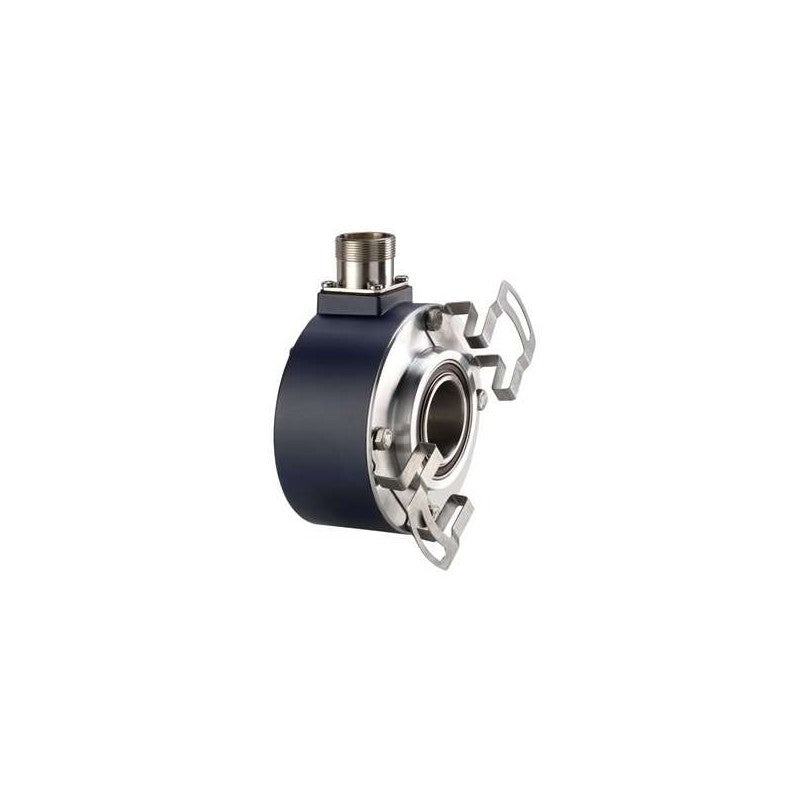

The Schneider Electric XCC1930TS05KN is an incremental encoder designed for precise motion feedback in automated systems. As part of the XCC series, this encoder features a through-shaft design and a 30 mm mounting diameter, making it suitable for integration into various machine configurations. Its 500 pulse-per-revolution resolution ensures accurate position and speed monitoring for demanding industrial applications.

Technical details

• Encoder Type: Incremental Encoder
• Shaft Type: Through Shaft
• Shaft Diameter: 30 mm
• Resolution: 500 Pulses Per Revolution (PPR)
• Output Signal Type: Push-Pull (also known as HTL or TTL depending on configuration, buyer should verify datasheet for specific output voltage compatibility)
• Series: XCC
• Connection Type: M12 connector (typical for this series, buyer should verify datasheet)
• Operating Temperature Range: Please refer to the manufacturer's datasheet for specific environmental ratings.

Applications & compatibility

This Schneider Electric incremental encoder is commonly employed in applications requiring high-accuracy position sensing, such as motor feedback on servo drives, robotics, and automated assembly machines. It is compatible with control systems that accept incremental encoder inputs, including PLCs and motion controllers found in packaging machinery, CNC equipment, and material handling systems.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the Schneider Electric XCC1930TS05KN or contact our technical team for cross-reference assistance with compatible XCC series components.
