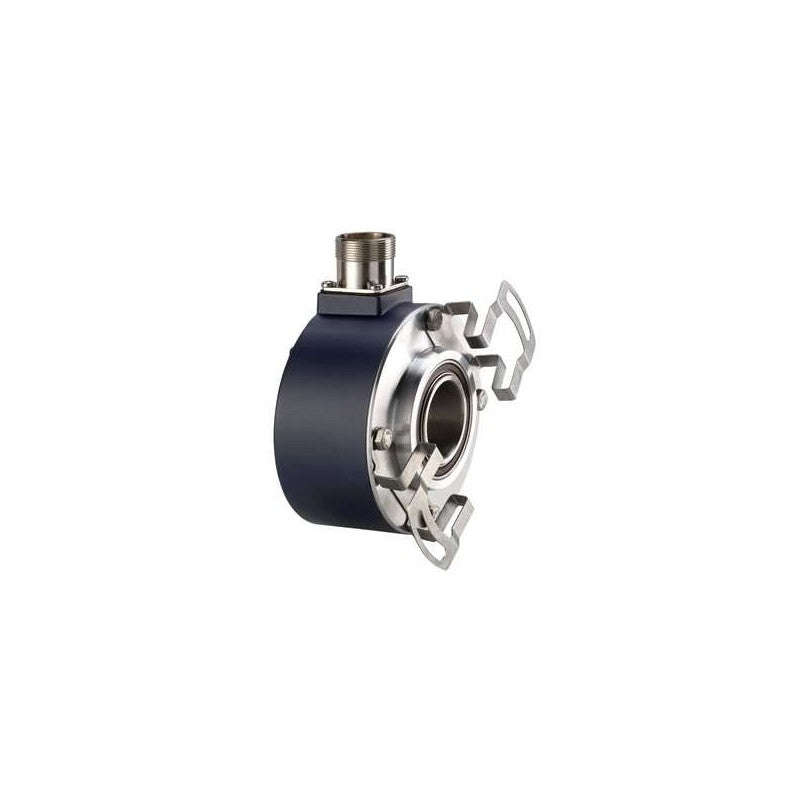

The Schneider Electric XCC1930TS10KN is an incremental encoder designed for precise motion feedback in automated systems. This encoder is part of the XCC series, known for its robust construction and reliable performance in demanding industrial environments. It features a through-shaft design suitable for direct mounting on motor shafts or other rotating components.

Technical details

• Series: XCC
• Encoder Type: Incremental
• Shaft Type: Through Shaft
• Shaft Diameter: 30 mm
• Resolution: 1000 Pulses Per Revolution (PPR)
• Output Signal Type: Push-Pull (also known as HTL or Line Driver depending on configuration, buyer should verify datasheet for specific output voltage compatibility)
• Mounting: Designed for direct shaft mounting
• Operating Principle: Optical sensing technology

Applications & compatibility

This encoder is commonly employed in applications requiring accurate position and speed monitoring, such as on servo motors, stepper motors, and general industrial machinery. It is well-suited for use in packaging machinery, material handling systems, robotics, and CNC equipment where precise control of rotational movement is critical for operational efficiency and product quality.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the Schneider Electric XCC1930TS10KN or contact our technical team for cross-reference assistance with compatible XCC series components.
