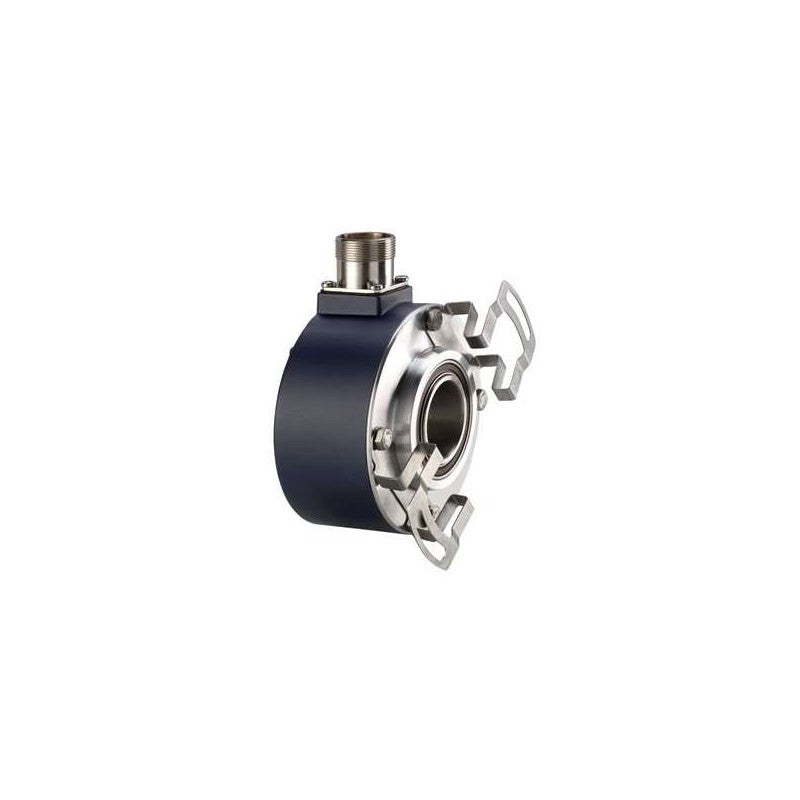

The Schneider Electric XCC1930TS11KN is an incremental encoder designed for precise position feedback in industrial automation systems. As part of the XCC series, this encoder features a through-shaft design with a 30 mm diameter, suitable for direct mounting on motor shafts or other rotating equipment. Its 1024 points per revolution provide high resolution for accurate motion control applications.

Technical details

• Series: XCC
• Encoder Type: Incremental
• Shaft Type: Through Shaft
• Shaft Diameter: 30 mm
• Resolution: 1024 Pulses Per Revolution (PPR)
• Output Signal Type: Push-Pull (also known as HTL or TTL depending on configuration, buyer should verify datasheet for specific output voltage compatibility)
• Connection Type: KN (This designation typically refers to a specific connector type or pinout; consult the manufacturer's datasheet for precise details.)
• Operating Principle: Optical sensing technology for reliable position tracking.

Applications & compatibility

This encoder is commonly employed in applications requiring accurate speed and position monitoring, such as on servo motors, stepper motors, and general-purpose industrial drives. It is well-suited for use in machine tools, robotics, packaging machinery, and material handling systems where precise motion control is critical for operational efficiency and product quality.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the Schneider Electric XCC1930TS11KN or contact our technical team for cross-reference assistance with compatible XCC series components.
