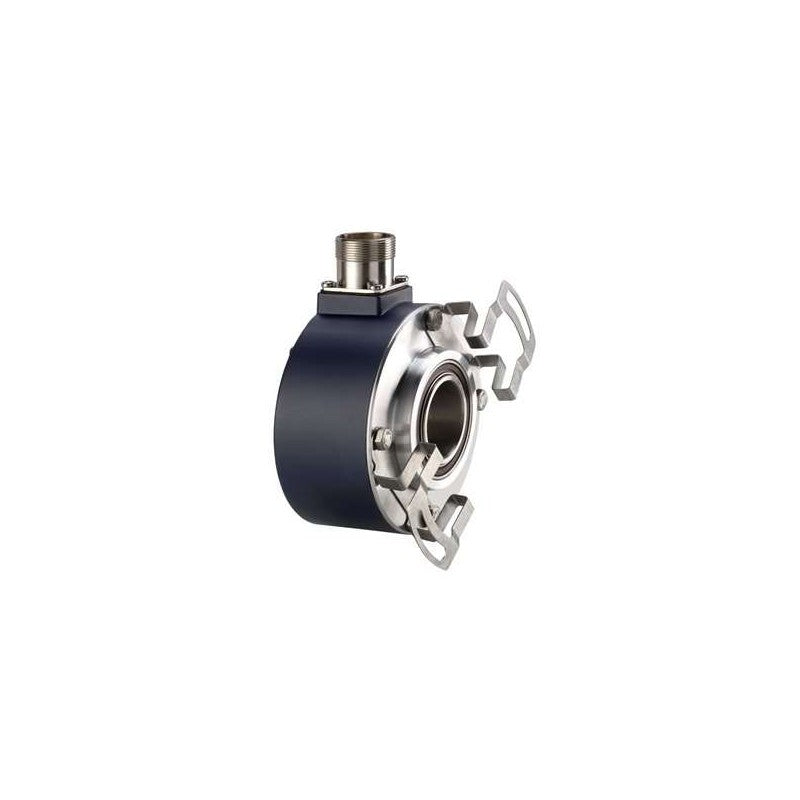

The Schneider Electric XCC1930TS25KN is an incremental encoder designed for precise motion feedback in industrial automation systems. As part of the XCC series, this encoder features a through-shaft design suitable for direct mounting on motor shafts or other rotating components. Its robust construction and reliable performance make it a critical component in applications requiring accurate position and speed monitoring.

Technical details

• Encoder Type: Incremental Encoder
• Shaft Type: Through Shaft
• Shaft Diameter: 30 mm
• Resolution: 2500 Pulses Per Revolution (PPR)
• Output Signal Type: Push-Pull (also known as Line Driver or RS422 compatible)
• Operating Voltage: Typically 5VDC to 30VDC (verify with manufacturer datasheet for exact range)
• Connection Type: Typically M12 connector (verify with manufacturer datasheet)
• Maximum Rotational Speed: Consult manufacturer datasheet for specific limits

Applications & compatibility

This Schneider Electric incremental encoder is commonly employed in automated machinery, robotics, and motion control systems where precise feedback is essential. Applications include packaging lines, CNC machinery, material handling equipment, and printing presses. Its push-pull output is compatible with a wide range of control systems and PLCs that accept differential line driver signals.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the XCC1930TS25KN or contact our technical team for cross-reference assistance with compatible Schneider Electric encoder components.
