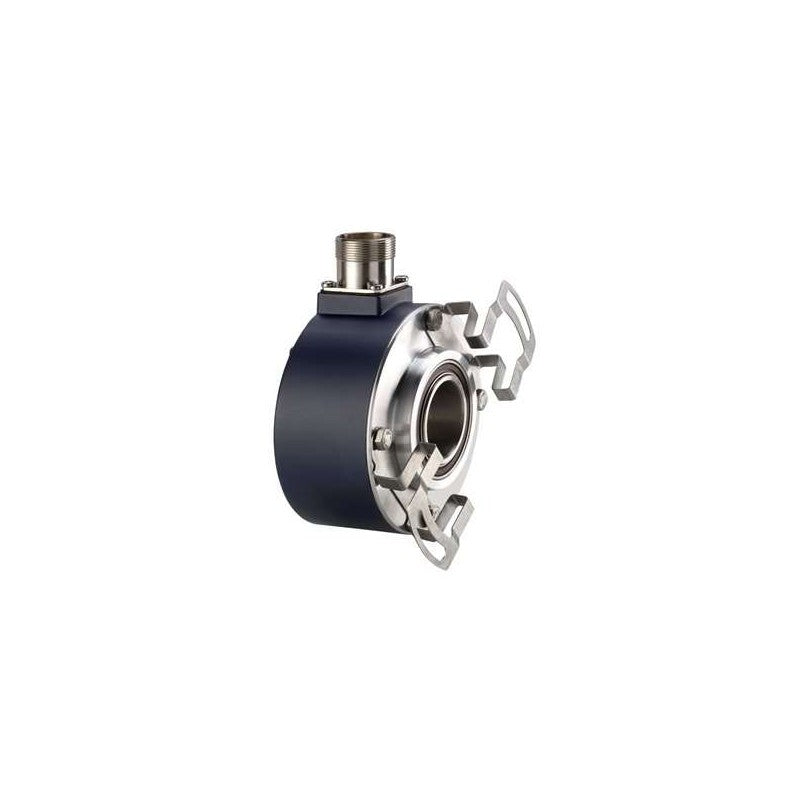

The Schneider Electric XCC1930TS36KN is an incremental encoder designed for precise position feedback in industrial automation systems. As part of the XCC series, this encoder features a through-shaft design with a 30 mm diameter, suitable for direct mounting on motor shafts or other rotating equipment. It provides 3600 pulses per revolution, enabling high-resolution position tracking for demanding applications.

Technical details

• Encoder Type: Incremental
• Shaft Type: Through Shaft
• Shaft Diameter: 30 mm
• Resolution: 3600 Pulses Per Revolution (PPR)
• Output Signal Type: Push-Pull (also known as HTL or TTL depending on configuration, buyer should verify datasheet for specific output voltage levels)
• Connection Type: M12 connector (typical for this series, buyer should verify datasheet)
• Operating Temperature Range: Consult manufacturer datasheet for specific range.
• Ingress Protection Rating: Consult manufacturer datasheet for specific rating (e.g., IP65).

Applications & compatibility

This Schneider Electric incremental encoder is commonly employed in applications requiring accurate speed and position monitoring, such as servo motor control, robotics, CNC machinery, and automated assembly lines. Its robust design and high resolution make it suitable for environments where precise motion control is critical for operational efficiency and product quality.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the Schneider Electric XCC1930TS36KN or contact our technical team for cross-reference assistance with compatible encoder solutions.
