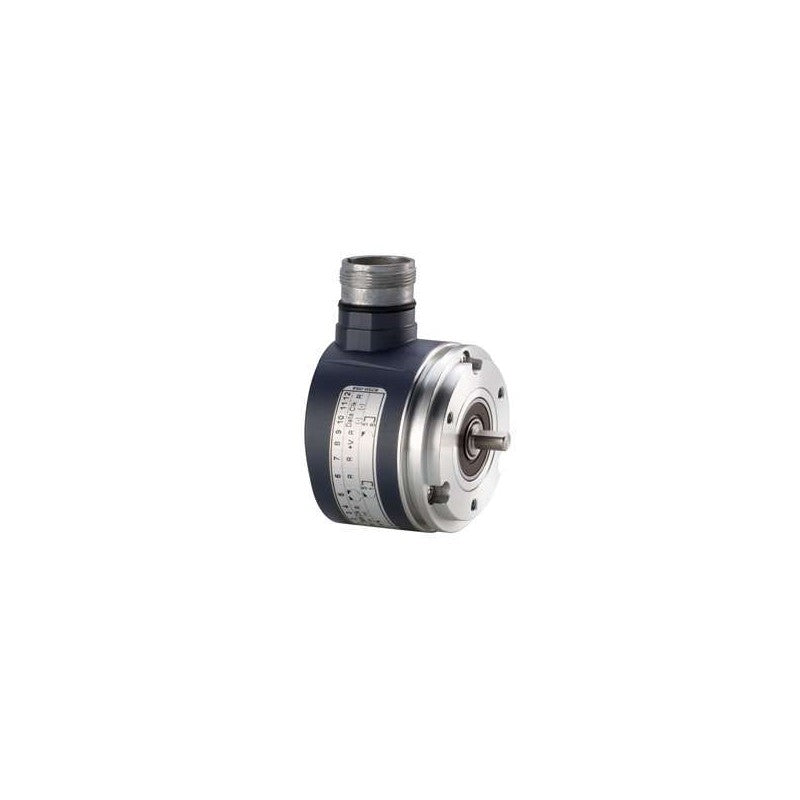

The Schneider Electric XCC2506PS81KGN is an absolute encoder designed for precise position feedback in industrial automation systems. As part of the XCC series, this encoder provides single-turn absolute position data, ensuring that the system knows its exact position upon startup without requiring a homing sequence. Its robust construction and reliable performance make it suitable for demanding environments found in machine tool control and robotics.

Technical details

• Encoder Type: Absolute Encoder
• Number of Turns: Single Turn
• Resolution: 13-bit Gray code output
• Shaft Type: Solid Shaft
• Shaft Diameter: 6 mm
• Output Interface: Push-Pull (also known as PNP/NPN selectable or universal output)
• Data Format: Gray Code
• Operating Principle: Optical sensing for absolute position detection

Applications & compatibility

This encoder is commonly integrated into CNC machinery, robotic arms, automated assembly lines, and other applications requiring high-accuracy position monitoring. Its push-pull output interface offers flexibility in connecting to various PLC and drive systems, simplifying integration into existing automation architectures. The 13-bit resolution provides a detailed positional output suitable for precise motion control tasks.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the Schneider Electric XCC2506PS81KGN or contact our technical team for cross-reference assistance with compatible absolute encoder solutions.
