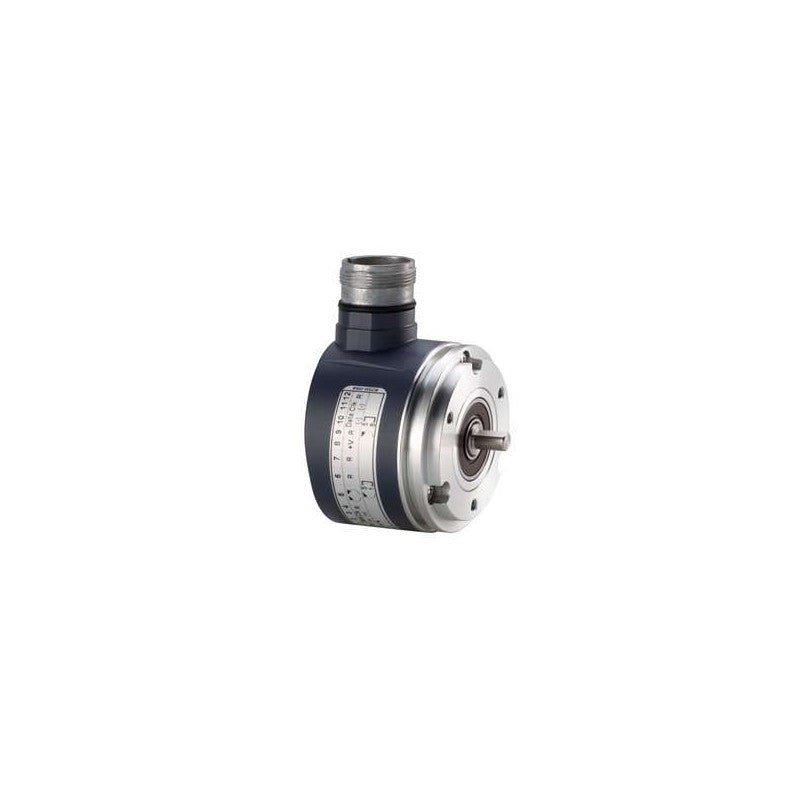

The Schneider Electric XCC2506PS81SGN is an absolute encoder designed for precise position feedback in industrial automation systems. As part of the XCC series, this single-turn encoder utilizes a solid shaft and push-pull output to deliver high-resolution position data. Its 13-bit Gray code output ensures accurate and reliable communication with control systems, making it suitable for applications requiring detailed motion tracking.

Technical details

• Encoder Type: Absolute Encoder
• Number of Turns: Single Turn
• Shaft Type: Solid Shaft
• Shaft Diameter: 6 mm
• Output Interface: Push-Pull
• Resolution: 13-bit
• Code Format: Gray Code
• Series: XCC Series

Applications & compatibility

This encoder is commonly employed in applications demanding precise rotational positioning, such as on servo motor feedback loops, robotic arm joints, and automated assembly equipment. Its compatibility extends to various industrial control platforms that support Gray code input and push-pull signaling, ensuring seamless integration into existing automation architectures.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the Schneider Electric XCC2506PS81SGN or contact our technical team for cross-reference assistance with compatible XCC series components.
