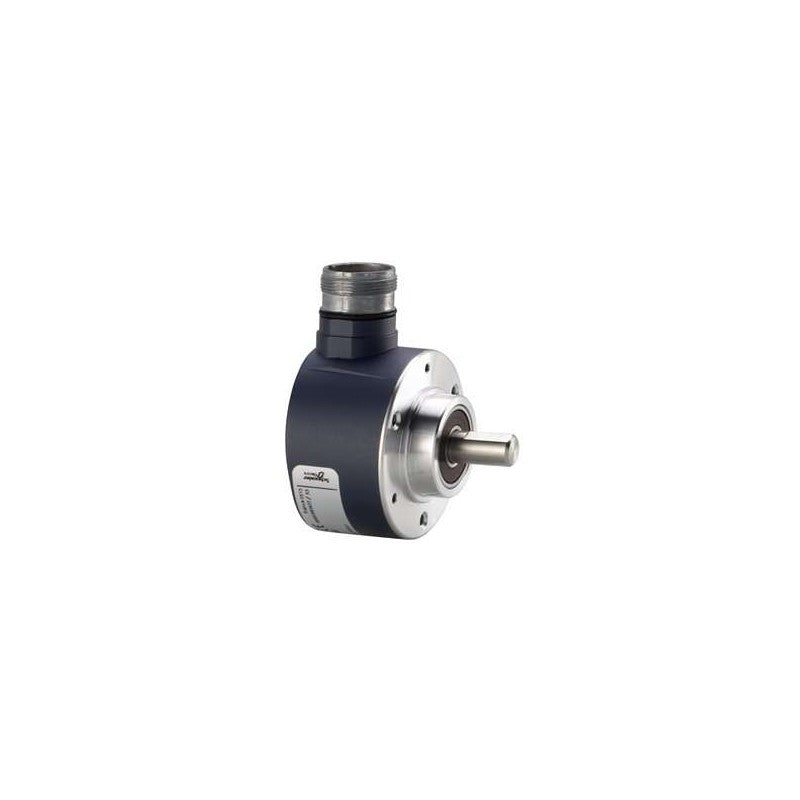

The Schneider Electric XCC2510PS81SGN is an absolute encoder designed for precise position feedback in industrial automation systems. As part of Schneider Electric's encoder solutions, this unit provides single-turn absolute position data, ensuring that the exact position is known immediately upon power-up without requiring a homing sequence. Its robust construction and reliable performance make it suitable for demanding environments found in machine building and process control.

Technical details

• Encoder Type: Absolute Encoder
• Number of Turns: Single Turn
• Resolution: 13-bit Gray code output
• Shaft Type: Solid Shaft
• Shaft Diameter: 10 mm
• Output Interface: Push-Pull (also known as PNP/NPN selectable or universal output)
• Data Format: Gray Code
• Operating Principle: Absolute position sensing

Applications & compatibility

This encoder is commonly integrated into systems requiring high-accuracy position monitoring, such as CNC machinery, robotic arms, automated assembly lines, and material handling equipment. Its push-pull output is compatible with a wide range of PLC inputs and drives that accept standard digital signals, facilitating integration into existing automation architectures.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the Schneider Electric XCC2510PS81SGN or contact our technical team for cross-reference assistance with compatible absolute encoder solutions.
