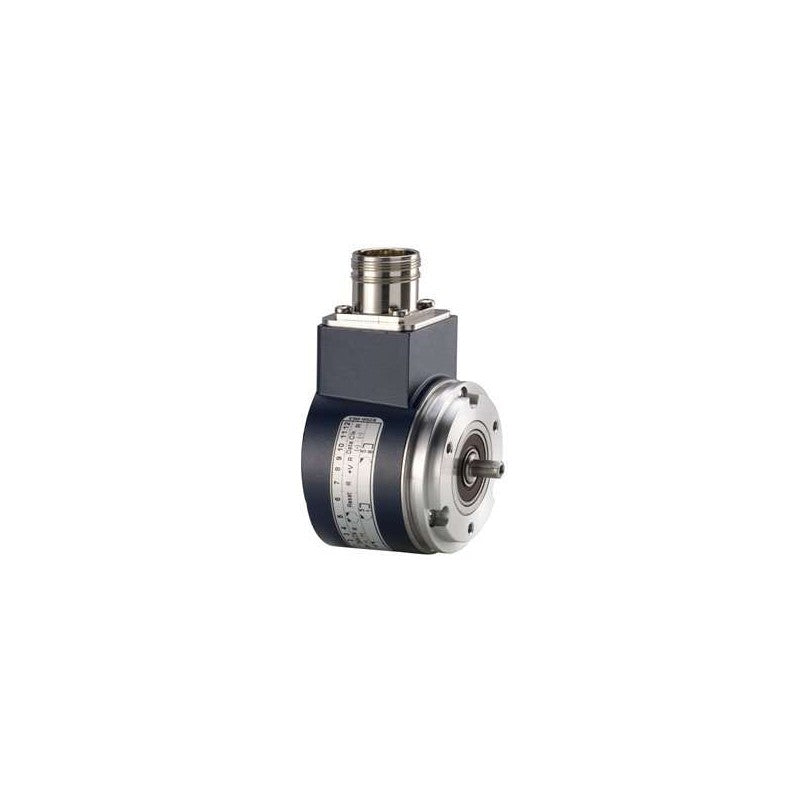

The Schneider Electric XCC3506PS48SGN is an absolute multi-turn encoder designed for precise position feedback in industrial automation systems. As part of the Schneider Electric encoder family, this unit offers robust performance for applications requiring high resolution and reliable data transmission. Its solid shaft design ensures secure mounting in demanding environments.

Technical details

• Encoder Type: Absolute Multi-Turn
• Resolution: 25-bit
• Output Protocol: SSI (Synchronous Serial Interface)
• Output Code: Gray Code
• Shaft Diameter: 6 mm
• Shaft Type: Solid Shaft
• Operating Voltage: Verify with manufacturer datasheet (encoded information not fully determinable from part number alone)
• Housing Material: Verify with manufacturer datasheet (encoded information not fully determinable from part number alone)

Applications & compatibility

This encoder is suitable for integration into a wide range of automated machinery, including CNC machines, robotics, material handling systems, and packaging equipment. Its SSI output makes it compatible with many PLC and motion control systems that support this serial communication protocol.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the XCC3506PS48SGN or contact our technical team for cross-reference assistance with compatible Schneider Electric encoder components.
