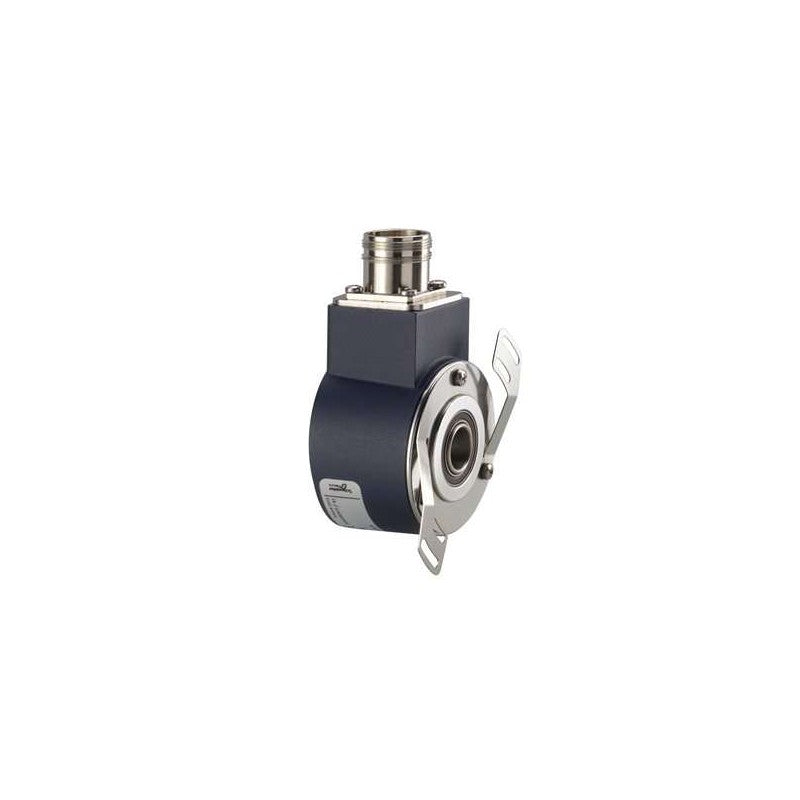

The Schneider Electric XCC3514TS84SG is an absolute rotary encoder designed for precise position feedback in industrial automation systems. As part of the XCC series, this encoder provides multi-turn absolute position data, ensuring that the exact position is known even after power cycles. Its through-shaft design facilitates direct mounting onto motor shafts or other rotating components, simplifying mechanical integration.

Technical details

• Encoder Type: Absolute Rotary Encoder
• Multi-Turn Capability: Yes
• Shaft Type: Through Shaft
• Shaft Diameter: 14 mm
• Communication Protocol: SSI (Synchronous Serial Interface)
• Resolution: 25-bit
• Output Code Format: Gray Code
• Manufacturer Series: XCC

Applications & compatibility

This encoder is suitable for applications requiring high-resolution absolute position feedback, such as servo motor control, robotics, automated assembly lines, and material handling equipment. It is commonly integrated into CNC machinery, packaging equipment, and automated warehousing systems where precise and reliable position tracking is critical for operational efficiency and accuracy.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the XCC3514TS84SG or contact our technical team for cross-reference assistance with compatible Schneider Electric automation components.
