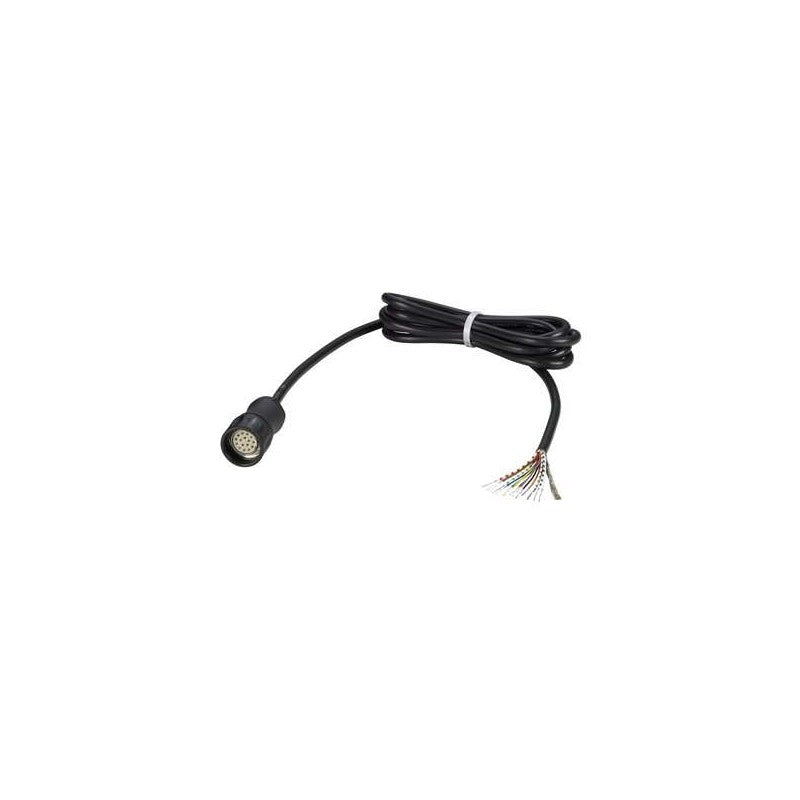

This Schneider Electric M23 connector is designed for absolute single-turn encoder applications, facilitating reliable data transmission in demanding industrial environments. The XCCPM23161L10 model features a pre-wired female M23 connector and a 10-meter cable, ensuring straightforward integration with compatible absolute encoders. Its robust construction is engineered to withstand the rigors of factory automation.

Technical details

• Connector Type: Pre-wired Female M23
• Encoder Type Compatibility: Absolute Single Turn
• Cable Length: 10 meters
• Connection Protocol: Not specified; verify with manufacturer datasheet for encoder communication protocol (e.g., SSI, BiSS)
• Voltage Rating: Not specified; verify with manufacturer datasheet
• Current Rating: Not specified; verify with manufacturer datasheet
• Operating Temperature Range: Not specified; verify with manufacturer datasheet
• Enclosure Rating: Not specified; verify with manufacturer datasheet

Applications & compatibility

This connector is essential for systems utilizing absolute single-turn encoders, commonly found in applications requiring precise position feedback. It is suitable for integration into robotic arms, automated assembly lines, CNC machinery, and material handling equipment where accurate and continuous position data is critical for operational control.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the XCCPM23161L10 or contact our technical team for cross-reference assistance with compatible absolute encoder systems.
