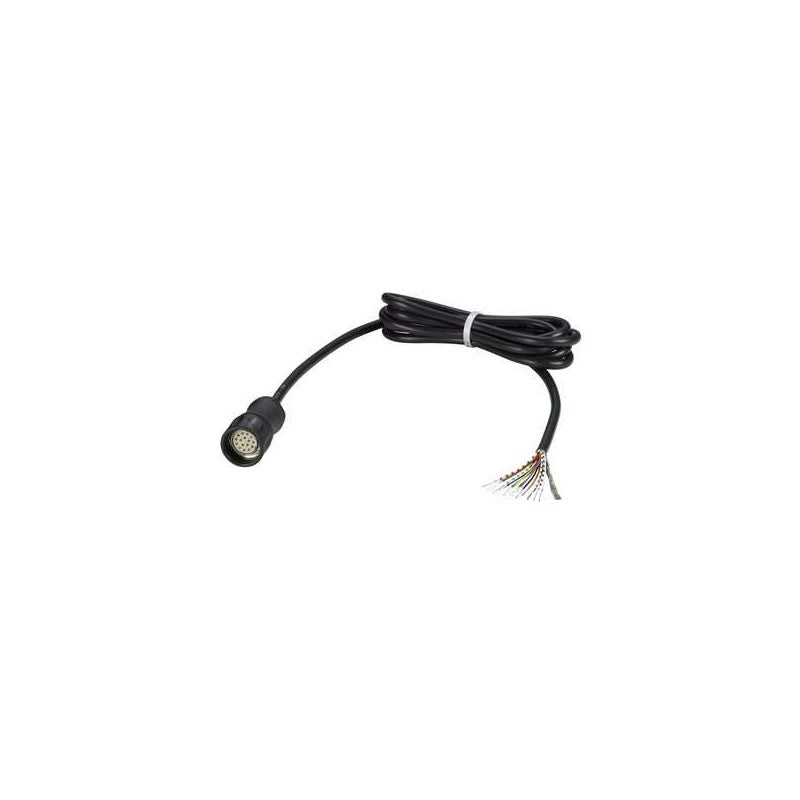

The Schneider Electric XCCPM23161L2 is a pre-wired M23 female connector designed for absolute single-turn encoder applications. This specific connector is part of a system that requires precise position feedback, commonly integrated into automated machinery where continuous and accurate positional data is critical for operational control and safety.

Technical details

• Connector Type: M23 Female
• Cable Length: 2 meters
• Encoder Type Compatibility: Absolute Single Turn
• Connection Configuration: Pre-wired
• Series Designation: XCC (indicative of Schneider Electric's industrial connectivity solutions)
• Housing Material: Typically robust industrial-grade plastic or metal for durability in harsh environments. (Verify with datasheet)
• Ingress Protection Rating: Expected to be IP67 or higher for protection against dust and water ingress. (Verify with datasheet)
• Contact Configuration: Designed to interface with specific encoder pinouts for absolute position data transmission. (Verify with datasheet)

Applications & compatibility

This XCCPM23161L2 connector is essential for systems utilizing absolute single-turn encoders, such as those found in robotics, CNC machining centers, automated assembly lines, and material handling equipment. Its pre-wired nature simplifies installation and reduces the risk of wiring errors in demanding industrial settings.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the XCCPM23161L2 or contact our technical team for cross-reference assistance with compatible Schneider Electric encoder components.
