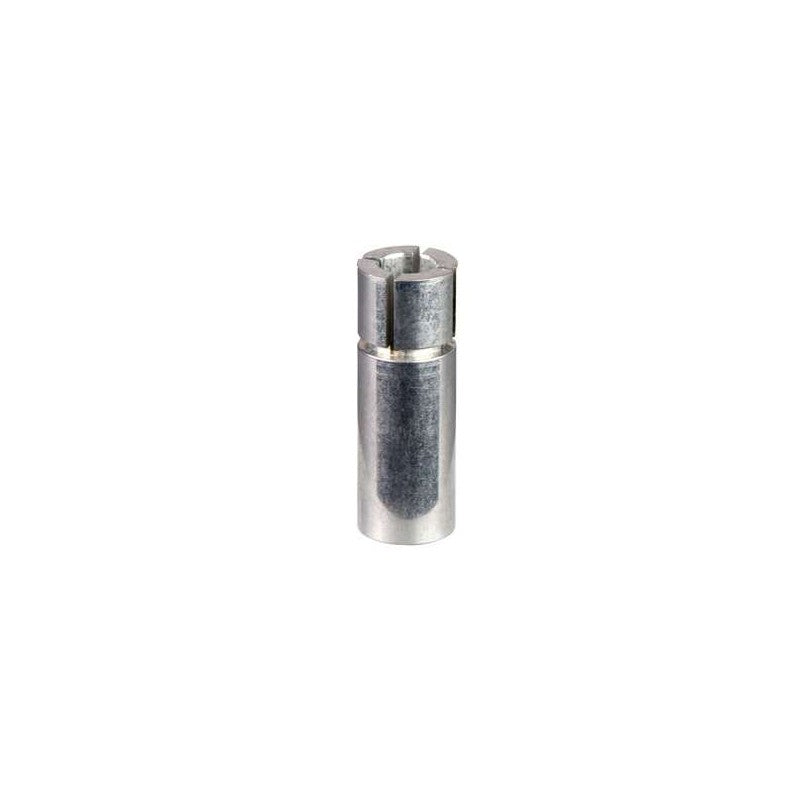

The Schneider Electric XCCR158RDA06 is a reduction collar specifically designed for use with 58mm encoders. This accessory facilitates the adaptation of encoder shafts, enabling a transition from a 14mm diameter to a 6mm diameter. It is engineered to ensure secure and precise mounting of encoders in various industrial automation systems.

Technical details

• Product Type: Reduction Collar
• Compatible Encoder Diameter (Input): 14 mm
• Compatible Encoder Diameter (Output): 6 mm
• Series: XCCR (Encoder Accessories)
• Manufacturer: Schneider Electric
• Function: Shaft diameter reduction for encoder mounting
• Material: Typically metal alloys for durability and precise fit (verify with datasheet)
• Environmental Rating: Suitable for industrial environments (verify with datasheet)

Applications & compatibility

This reduction collar is essential for applications requiring the mounting of 6mm shaft encoders onto equipment designed for 14mm shafts. It finds common use in motion control systems, robotics, and automated machinery where precise feedback is critical, such as on packaging lines, CNC machines, and material handling equipment.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the XCCR158RDA06 or contact our technical team for cross-reference assistance with compatible Schneider Electric encoder accessories.
