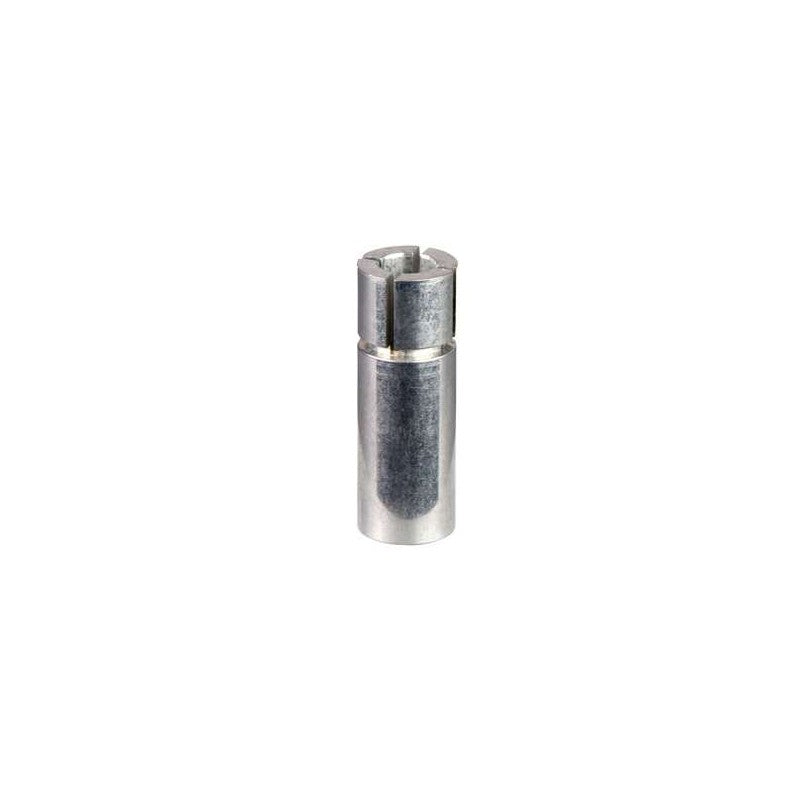

The Schneider Electric XCCR158RDA08 is a reduction collar specifically designed for use with 58mm encoders. This component facilitates the adaptation of encoder shafts, enabling a transition from a 14mm shaft diameter to an 8mm shaft diameter. It is engineered to ensure secure and precise mounting of encoders in various industrial automation systems.

Technical details

• Product Type: Reduction Collar
• Compatible Encoder Series: Schneider Electric 58mm Encoders
• Shaft Diameter Transition: From 14mm to 8mm
• Material: Typically constructed from durable metal alloys for industrial environments.
• Function: Adapts encoder shaft size for mounting compatibility.
• Mounting Type: Designed for secure press-fit or keyed shaft engagement.
• Environmental Rating: Suitable for standard industrial operating conditions.

Applications & compatibility

This reduction collar is essential for applications requiring the integration of 8mm shaft encoders into machinery originally designed for 14mm encoder shafts. It finds common use in motion control systems, robotics, automated manufacturing equipment, and any industrial setting where precise shaft adaptation is necessary for encoder functionality.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the XCCR158RDA08 or contact our technical team for cross-reference assistance with compatible Schneider Electric encoder components.
