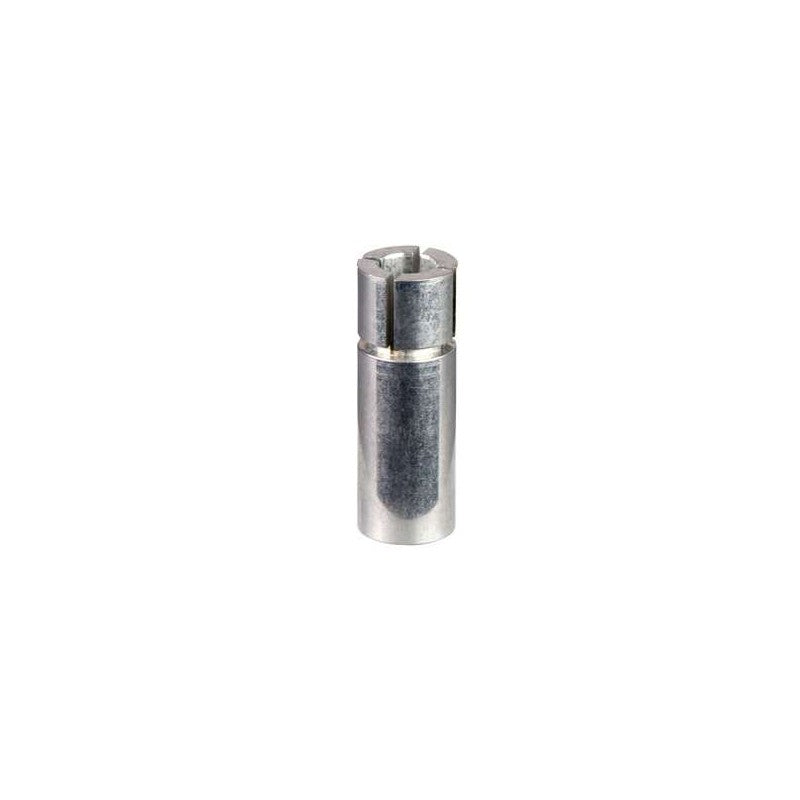

The Schneider Electric XCCR158RDA10 is a reduction collar designed for use with 58mm encoders. This accessory facilitates the adaptation of encoder shaft diameters, specifically transitioning from a 14mm shaft to a 10mm shaft. Its function is critical in ensuring proper mechanical coupling between the encoder and the driven equipment in various automation systems.

Technical details

• Product Type: Encoder Reduction Collar
• Manufacturer Series: Schneider Electric 58mm Encoder Series
• Shaft Diameter Reduction: From 14mm to 10mm
• Material: Typically constructed from durable metal alloys for industrial environments.
• Mounting Type: Designed for direct attachment to encoder shafts and compatible machinery.
• Environmental Rating: Suitable for standard industrial operating conditions; consult datasheet for specific IP ratings.
• Functionality: Provides a secure and precise mechanical interface for encoder shaft size conversion.

Applications & compatibility

This reduction collar is commonly employed in applications requiring the integration of 58mm encoders with machinery featuring 10mm shafts. It is particularly relevant for use in motion control systems found on packaging machinery, CNC machines, robotics, and material handling equipment where precise speed and position feedback are essential.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the XCCR158RDA10 or contact our technical team for cross-reference assistance with compatible Schneider Electric encoder accessories.
