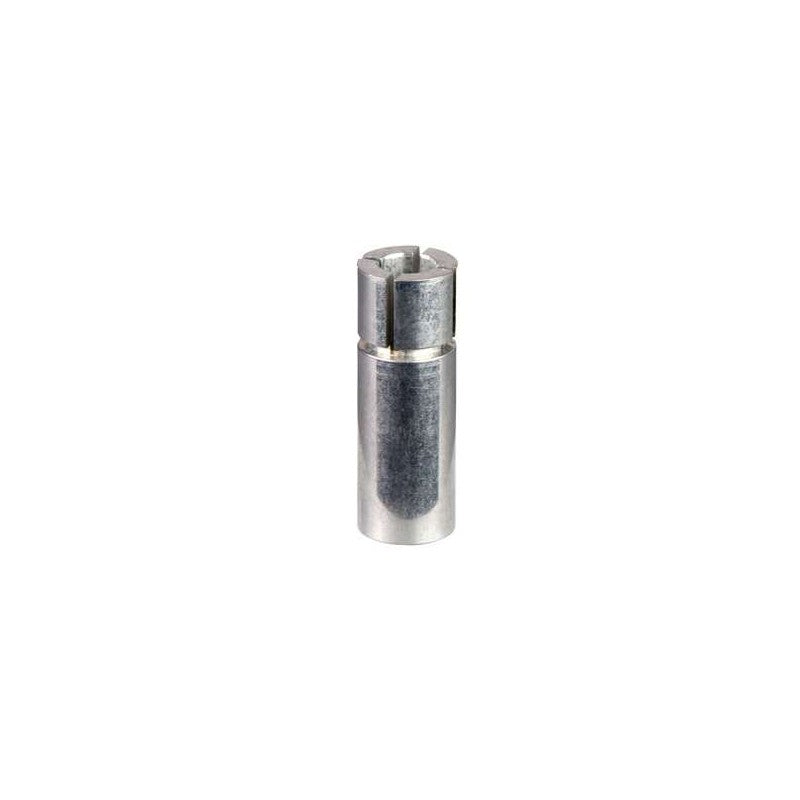

The Schneider Electric XCCR158RDA12 is a reduction collar specifically designed for use with 58mm encoders. This accessory facilitates the adaptation of encoder shafts, allowing for a transition from a 14mm shaft diameter to a 12mm diameter. It is engineered to ensure secure and precise mounting of the encoder onto machinery where shaft size compatibility is critical.

Technical details

• Product Type: Encoder Reduction Collar
• Manufacturer Series: Compatible with Schneider Electric 58mm Encoders
• Shaft Diameter Transition: 14mm (input) to 12mm (output)
• Material: Typically constructed from durable metal alloys for industrial environments.
• Mounting Method: Designed for secure press-fit or set-screw attachment to encoder shafts.
• Environmental Rating: Suitable for standard industrial operating conditions; consult manufacturer datasheet for specific IP ratings.
• Function: Provides mechanical adaptation for encoder shaft size compatibility.

Applications & compatibility

This reduction collar is essential for applications requiring the integration of 58mm encoders with machinery featuring 12mm drive shafts. It is commonly utilized in automation systems within the packaging industry, material handling, robotics, and general manufacturing where precise speed and position feedback are necessary. The XCCR158RDA12 ensures proper fitment and reliable operation of the encoder in diverse machine designs.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the XCCR158RDA12 or contact our technical team for cross-reference assistance with compatible Schneider Electric encoder accessories.
