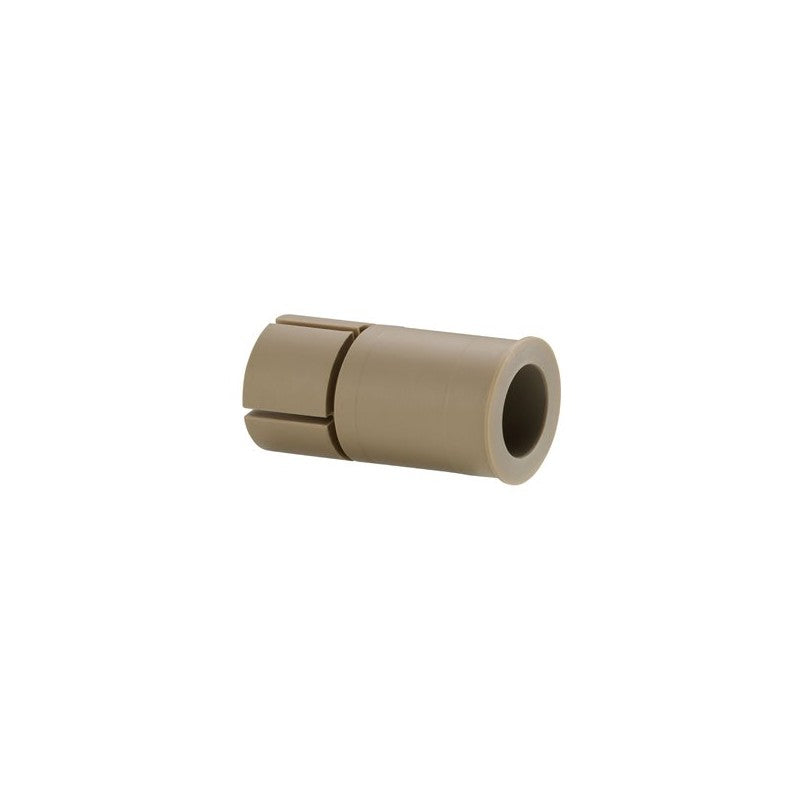

The Schneider Electric XCCR290RDP20 is a reduction collar specifically designed for use with 90mm encoders. This component facilitates the adaptation of an encoder shaft from a 30mm diameter down to a 20mm diameter, ensuring precise mechanical coupling in automated systems. It is engineered to maintain the integrity of encoder signals by providing a secure and stable connection.

Technical details

• Product Type: Reduction Collar
• Manufacturer Series: XCCR (Encoder Accessories)
• Encoder Mounting Diameter (Original): 30 mm
• Encoder Mounting Diameter (Reduced): 20 mm
• Compatible Encoder Size: 90 mm
• Material: Typically constructed from durable metal alloys for industrial environments.
• Functionality: Adapts encoder shaft size for mounting flexibility.
• Environmental Rating: Designed for standard industrial operating conditions; consult manufacturer datasheet for specific IP ratings.

Applications & compatibility

This reduction collar is essential for integrating 90mm encoders into machinery where shaft size compatibility is critical. It finds common application in servo motor feedback systems, robotics, and automated manufacturing equipment that require precise position feedback. Its use ensures that a 30mm shaft encoder can be securely mounted onto a 20mm motor shaft or coupling.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the XCCR290RDP20 or contact our technical team for cross-reference assistance with compatible Schneider Electric encoder accessories.
