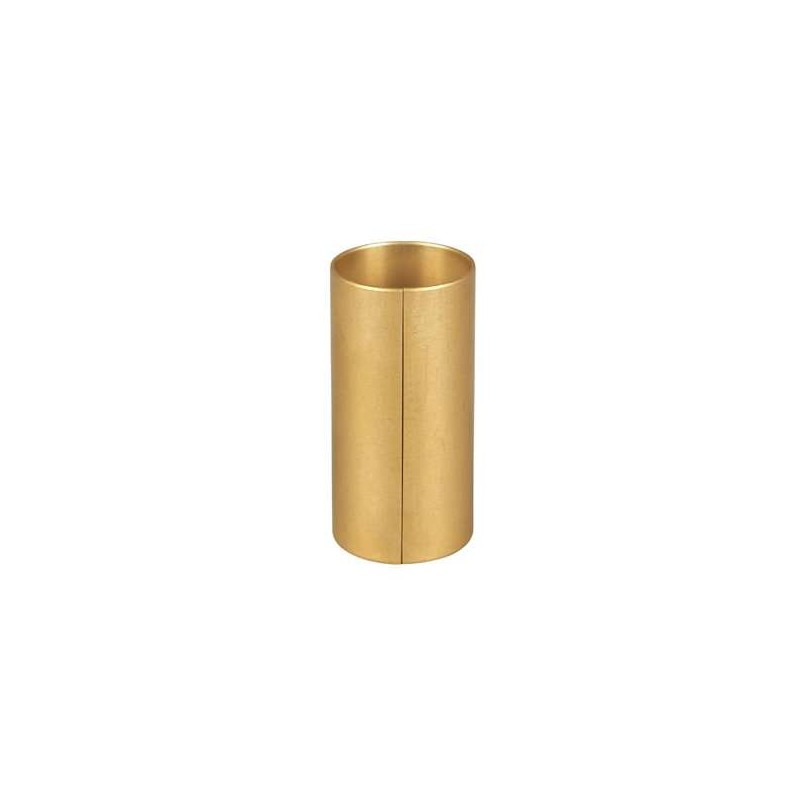

The Schneider Electric XCCR358RDL06 is a reduction collar specifically designed for use with 58mm encoders featuring a hollow shaft. This component facilitates the adaptation of encoder shaft sizes, enabling compatibility between different mounting configurations. It is engineered to provide a secure and precise fit, ensuring reliable signal transmission from the encoder to the control system.

Technical details

• Product Type: Reduction Collar
• Compatible Encoder Series: 58mm Encoders
• Shaft Type: Hollow Shaft
• Shaft Size Reduction: From 15 mm to 6 mm
• Material: Typically metal alloy for durability and precise fit (verify with datasheet)
• Mounting Method: Secures to encoder shaft and mating equipment shaft (verify with datasheet)
• Environmental Rating: Suitable for industrial environments (verify with datasheet)
• Operating Temperature Range: Standard industrial operating temperatures (verify with datasheet)

Applications & compatibility

This reduction collar is essential for applications requiring the integration of a 15mm hollow shaft encoder into a system designed for a 6mm shaft. Common use cases include retrofitting existing machinery, custom automation projects, and ensuring compatibility in packaging lines, CNC machinery, and robotics where precise shaft adaptation is critical.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the XCCR358RDL06 or contact our technical team for cross-reference assistance with compatible Schneider Electric encoder accessories.
