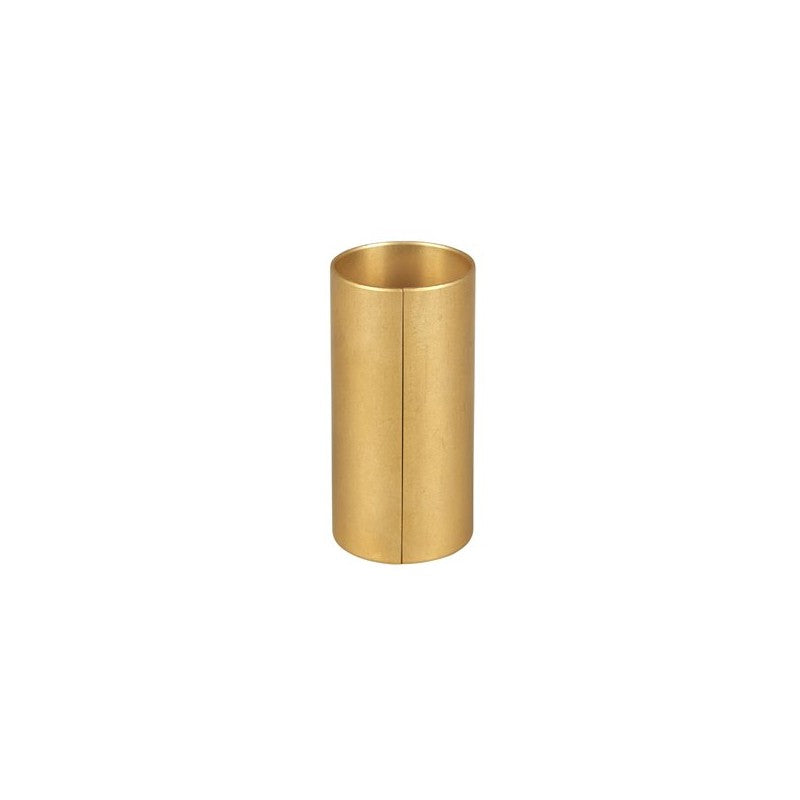

This Schneider Electric reduction collar is designed for use with 58mm encoders featuring a hollow shaft. It facilitates the adaptation of an encoder's shaft diameter from 15mm down to 8mm, ensuring compatibility with a wider range of motor or drive shafts. This component is essential for precise mounting and secure connection in automation systems.

Technical details

• Product Type: Encoder Shaft Reduction Collar
• Manufacturer Series: Compatible with Schneider Electric 58mm Encoders
• Shaft Diameter Reduction: From 15mm to 8mm
• Hollow Shaft Compatibility: Designed for encoders with hollow shaft configurations
• Material: Typically constructed from durable metal alloys for industrial environments (verify with datasheet)
• Mounting Method: Secures to the encoder shaft and motor shaft via set screws or clamping mechanism (verify with datasheet)
• Operating Temperature Range: Standard industrial ranges apply; consult manufacturer specifications for precise limits.
• Environmental Protection: Designed to withstand typical industrial conditions; specific IP ratings should be confirmed with the manufacturer's documentation.

Applications & compatibility

This reduction collar is commonly employed in applications requiring the integration of a 58mm hollow shaft encoder with motors or machinery that have an 8mm shaft diameter. It is frequently found in servo motor feedback systems, industrial robotics, and automated machinery on packaging lines, CNC machines, and material handling equipment.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the XCCR358RDL08 or contact our technical team for cross-reference assistance with compatible encoder mounting solutions.
