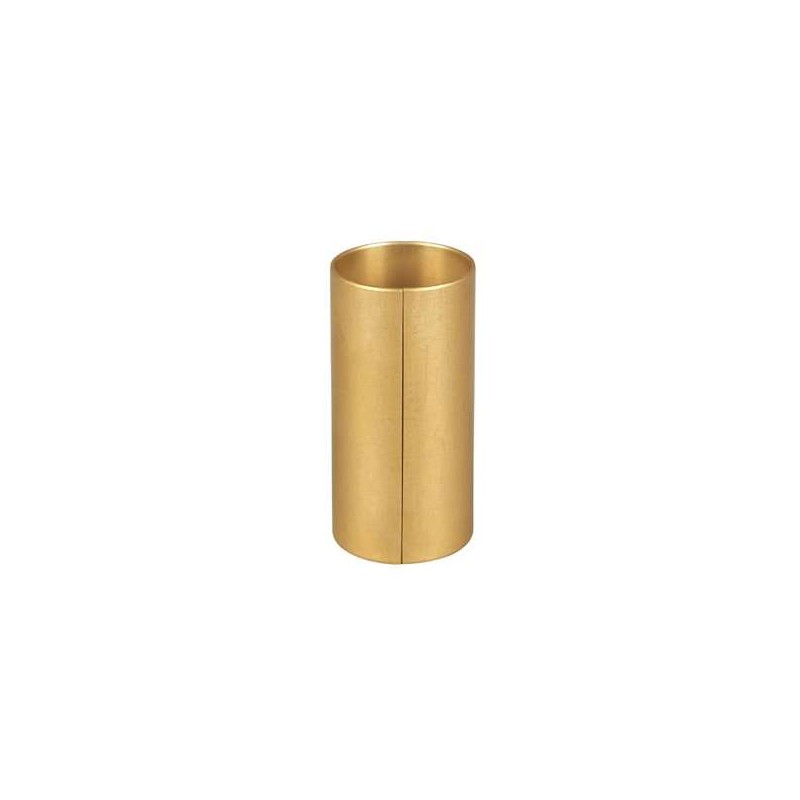

The Schneider Electric XCCR358RDL10 is a reduction collar designed for use with 58mm encoders featuring a hollow shaft. This component facilitates the adaptation of a 15mm encoder shaft to a 10mm mounting bore, ensuring precise fitment in various automation setups. It is engineered to maintain the integrity of encoder signals and mechanical alignment within demanding industrial environments.

Technical details

• Product Type: Reduction Collar
• Compatibility: Designed for 58mm encoders with hollow shafts
• Shaft Reduction: Adapts a 15mm encoder shaft to a 10mm bore
• Material: Typically constructed from durable metal alloys for industrial longevity (verify with manufacturer datasheet for specific material composition)
• Environmental Rating: Suitable for standard industrial operating conditions (verify specific IP rating and temperature range with manufacturer datasheet)
• Mounting Method: Secures the encoder shaft within the larger bore, often utilizing set screws or clamping mechanisms (verify specific mounting details with manufacturer datasheet)
• Series: Part of Schneider Electric's encoder accessory line

Applications & compatibility

This reduction collar is essential for integrating Schneider Electric 58mm encoders into machinery requiring a 10mm shaft diameter. It finds common application in motor feedback systems for variable speed drives, servo systems, and general motion control on packaging machinery, CNC equipment, and automated assembly lines.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the XCCR358RDL10 or contact our technical team for cross-reference assistance with compatible encoder accessories.
