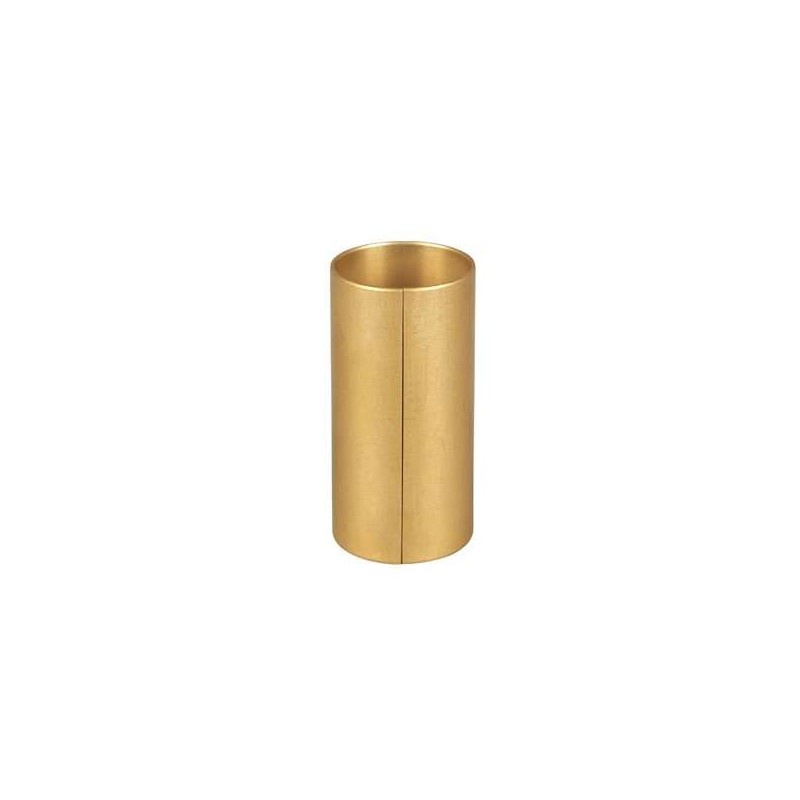

This Schneider Electric reduction collar is designed for use with 58mm encoders featuring a hollow shaft. It facilitates a shaft size transition from 15mm down to 12mm, ensuring compatibility with a range of encoder mounting configurations. This component is essential for adapting existing encoder installations to different shaft diameters without requiring a complete system overhaul.

Technical details

• Product Type: Reduction Collar
• Manufacturer Series: Schneider Electric 58mm Encoder Accessories
• Shaft Compatibility (Outer): 15 mm
• Shaft Compatibility (Inner): 12 mm
• Function: Reduces encoder shaft diameter
• Material: Typically metal (verify with manufacturer datasheet for specific alloy)
• Environmental Rating: Varies by specific encoder model and application (verify with manufacturer datasheet)

Applications & compatibility

This reduction collar is commonly employed in industrial automation environments where encoder shaft size needs to be adapted. Applications include retrofitting existing machinery, integrating new encoders into legacy systems, and ensuring precise fitment on motor shafts or other rotating components in sectors such as material handling, robotics, and machine tool manufacturing.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the XCCR358RDL12 or contact our technical team for cross-reference assistance with compatible Schneider Electric encoder accessories.
