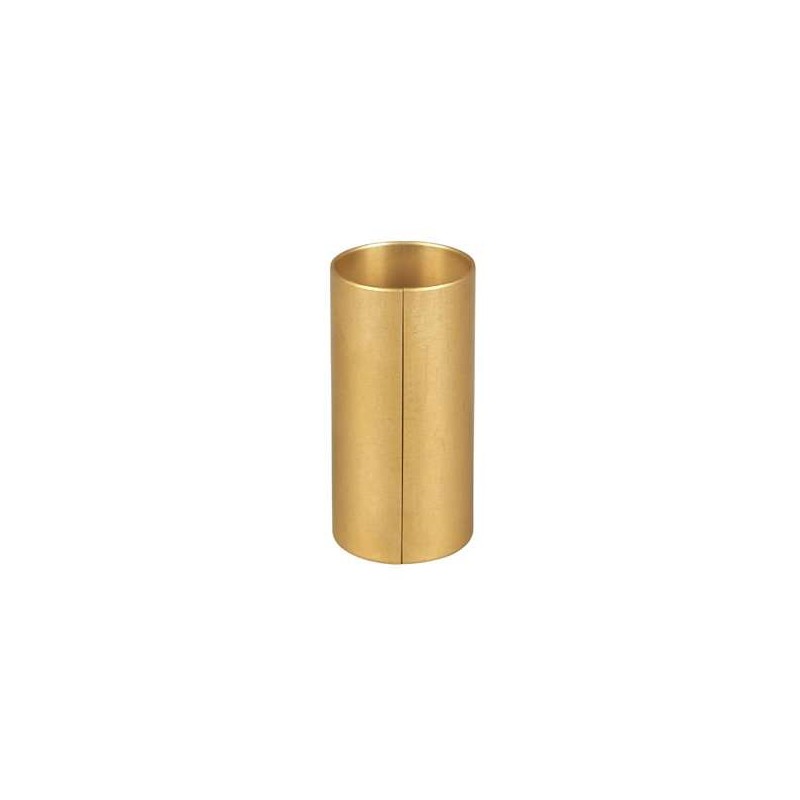

This Schneider Electric reduction collar is designed for use with 58mm encoders featuring a hollow shaft. It facilitates a shaft size transition from 15mm down to 14mm, ensuring precise fitment and secure mounting in demanding industrial environments. This component is essential for maintaining encoder functionality when integrating with machinery requiring specific shaft diameters.

Technical details

• Product Type: Reduction Collar
• Manufacturer Series: Schneider Electric 58mm Encoder Accessories
• Shaft Diameter Reduction: From 15 mm to 14 mm
• Compatible Encoder Shaft Type: Hollow Shaft
• Material: Typically metal alloy for durability and resistance to industrial conditions (verify with datasheet for exact material composition).
• Mounting Method: Designed for secure attachment to the encoder shaft and mating equipment (verify mounting screw specifications with datasheet).
• Environmental Rating: Suitable for standard industrial operating temperatures and humidity levels (verify specific ratings with datasheet).
• Dimensional Tolerance: Manufactured to precise tolerances to ensure a snug and reliable fit (verify specific tolerances with datasheet).

Applications & compatibility

This reduction collar is commonly employed in applications where a 15mm encoder shaft needs to be adapted for a 14mm mounting bore or coupling. It is frequently found in automation systems for packaging machinery, material handling equipment, robotics, and machine tools where precise speed and position feedback are critical.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the XCCR358RDL14 or contact our technical team for cross-reference assistance with compatible Schneider Electric encoder accessories.
