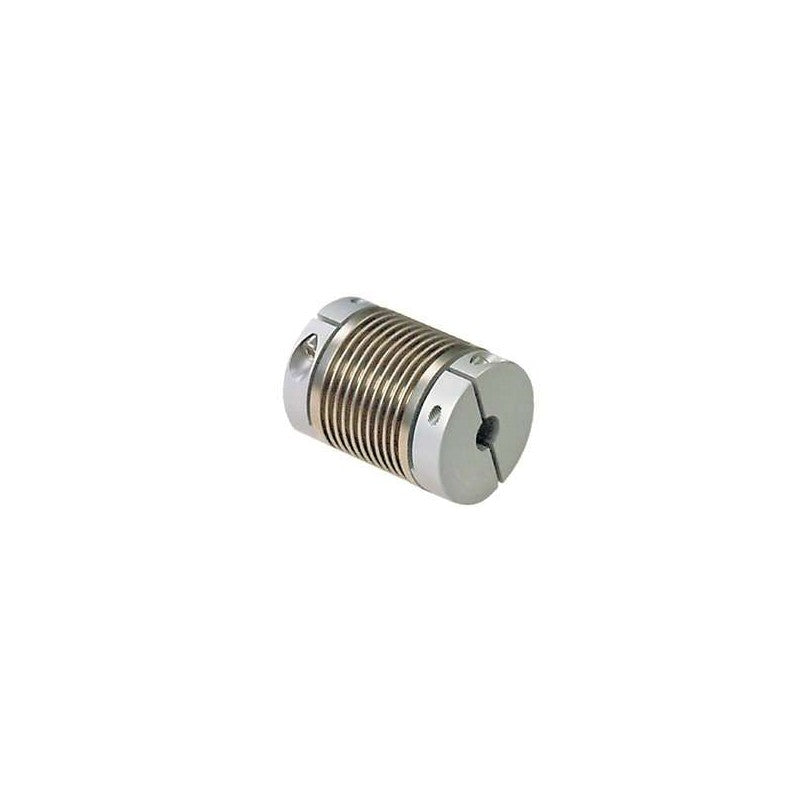

The Schneider Electric XCCRAE0606 is an elastic monobloc shaft coupling designed for encoder applications. This coupling facilitates the mechanical connection between an encoder shaft and a drive shaft, ensuring accurate rotational data transmission in automated systems. Its monobloc construction provides a compact and robust solution for environments requiring reliable encoder feedback.

Technical details

• Series: XCC (Encoder Couplings)
• Type: Elastic Monobloc Shaft Coupling
• Application: Encoder Mounting
• Shaft Diameter (Input): 6 mm
• Shaft Diameter (Output): 6 mm
• Construction: Monobloc elastic design
• Material: Typically engineered plastic or metal alloy for durability and vibration damping (verify with manufacturer datasheet for exact material composition).
• Functionality: Accommodates minor shaft misalignment and dampens torsional vibrations.

Applications & compatibility

This shaft coupling is specifically engineered for integrating encoders into various industrial machinery. It is commonly found in applications such as servo motor feedback systems, robotic arms, CNC machines, and automated assembly lines where precise position and speed monitoring are critical. The 6mm to 6mm bore size makes it suitable for a range of smaller motor and encoder shaft combinations.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the Schneider Electric XCCRAE0606 or contact our technical team for cross-reference assistance with compatible encoder mounting solutions.
