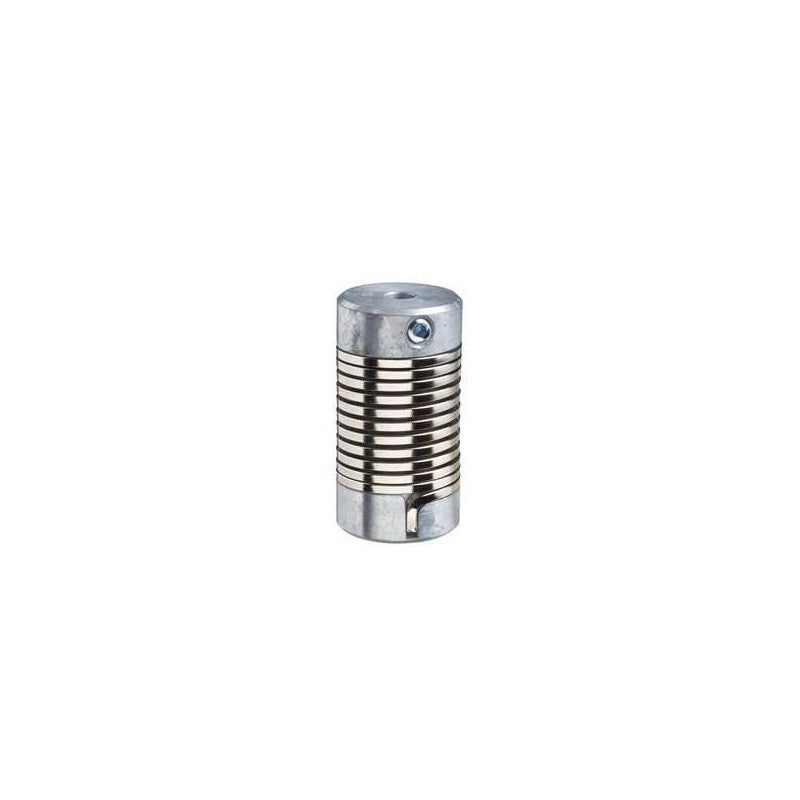

This Schneider Electric shaft coupling is designed for encoder applications, facilitating precise mechanical connection between a motor shaft and an encoder. Specifically, the XCCRAR1010 model is engineered to accommodate shaft diameters ranging from 10 mm to 10 mm, ensuring a secure fit for encoders with identical shaft sizes. Its spring-loaded design provides flexibility and absorbs minor misalignments, critical for maintaining accurate feedback in automated systems.

Technical details

• Product Type: Shaft Coupling
• Application: Encoder Mounting
• Series: XCCR (Schneider Electric Encoder Couplings)
• Shaft Diameter (Input): 10 mm
• Shaft Diameter (Output): 10 mm
• Coupling Mechanism: Spring-loaded
• Material: Typically metal alloy (verify with manufacturer datasheet for specific material composition)
• Functionality: Accommodates axial, radial, and angular misalignment

Applications & compatibility

This shaft coupling is essential for maintaining the integrity of feedback loops in various industrial automation systems. It is commonly found in applications requiring precise position sensing, such as servo motor feedback systems, robotics, CNC machinery, and automated assembly lines where accurate encoder performance is paramount.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the Schneider Electric XCCRAR1010 or contact our technical team for cross-reference assistance with compatible encoder and motor components.
