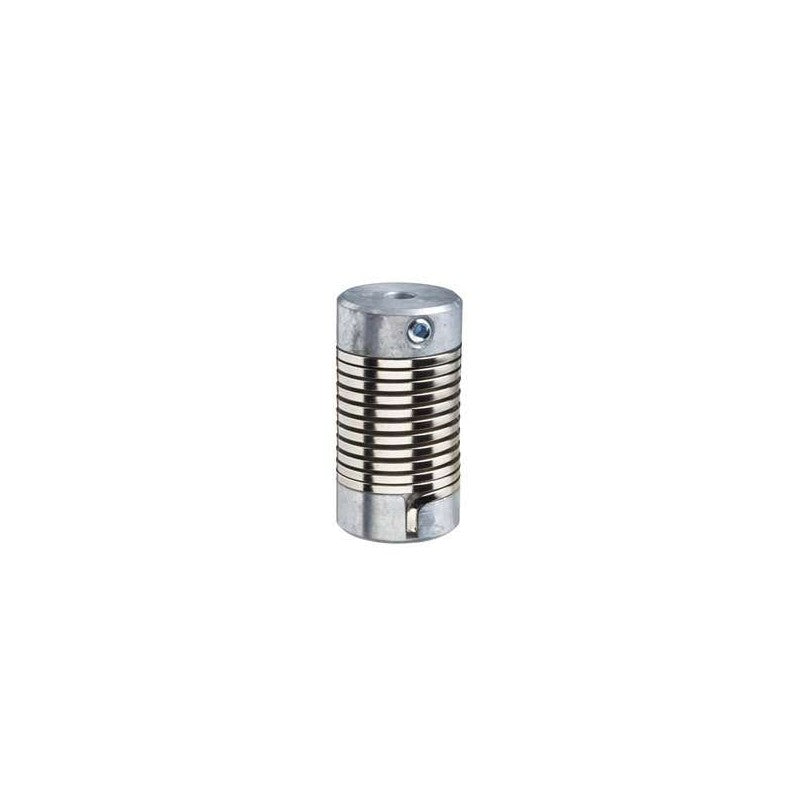

The Schneider Electric XCCRAR1016 is a shaft coupling designed for encoder applications, featuring a spring mechanism for secure connection. This component is engineered to facilitate the precise transmission of rotational motion between an encoder and a motor shaft, ensuring accurate feedback for motion control systems. Its design accommodates shaft diameters ranging from 10 mm to 16 mm, making it suitable for a variety of encoder and motor configurations commonly found in industrial automation.

Technical details

• Product Type: Shaft Coupling
• Manufacturer Series: XCCR (Encoder Couplings)
• Functionality: Spring-loaded connection for encoder mounting
• Shaft Diameter Range: 10 mm to 16 mm
• Material: Typically constructed from durable materials for industrial environments (verify with datasheet)
• Torque Transmission: Designed to transmit encoder rotational data without slippage (verify with datasheet)
• Vibration Damping: Spring mechanism may offer some vibration isolation (verify with datasheet)
• Operating Temperature: Suitable for standard industrial operating temperatures (verify with datasheet)

Applications & compatibility

This shaft coupling is integral to systems requiring precise position feedback, commonly found in servo motor applications, robotics, and automated machinery. It ensures reliable communication between encoders and control systems in sectors such as material handling, packaging lines, and CNC machining centers. The XCCRAR1016 is compatible with encoders and motors that fall within the specified 10 mm to 16 mm shaft diameter range.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the XCCRAR1016 or contact our technical team for cross-reference assistance with compatible Schneider Electric encoder components.
