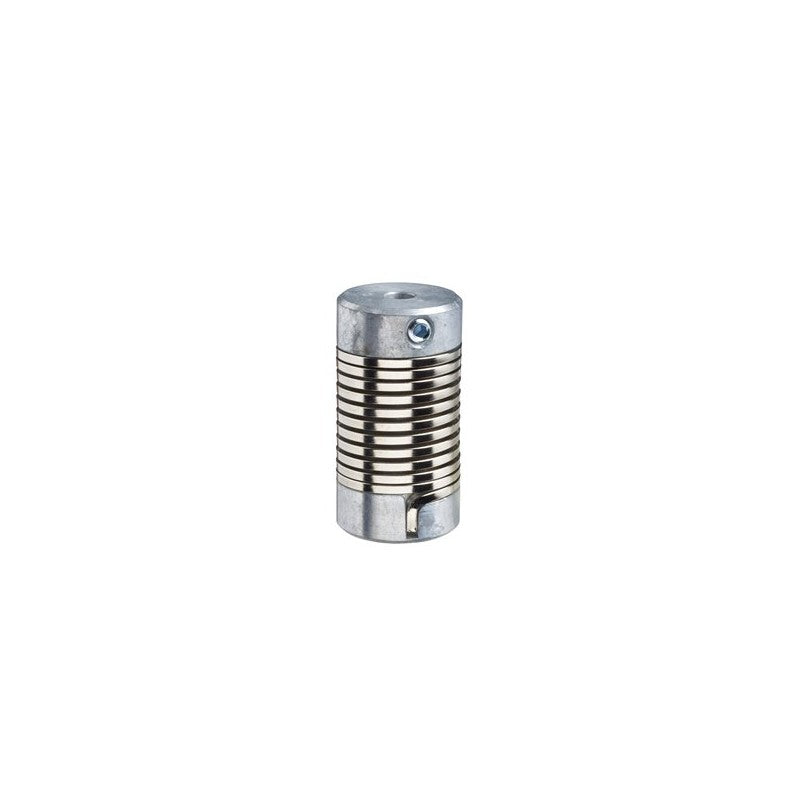

This Schneider Electric shaft coupling is designed for encoder applications, facilitating the connection between an encoder shaft and a motor or other rotating equipment. It features a spring mechanism for flexible coupling and accommodates shaft diameters ranging from 12 mm to 14 mm. This component is essential for maintaining precise alignment and transmitting rotational motion in automation systems.

Technical details

• Manufacturer Series: Schneider Electric
• Product Type: Shaft Coupling
• Application: Encoder connection
• Coupling Mechanism: Spring
• Shaft Diameter Range: 12 mm to 14 mm
• Material: Typically metal alloy (verify with datasheet)
• Torque Transmission: Varies based on specific model and application (verify with datasheet)
• Vibration Damping: Provided by spring design (verify with datasheet)

Applications & compatibility

This shaft coupling is commonly utilized in industrial automation environments where precise encoder feedback is critical. Applications include servo motor systems, robotics, CNC machinery, and automated assembly lines. Its compatibility is primarily with encoders and drive systems requiring a 12 mm to 14 mm shaft interface.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the XCCRAR1214 or contact our technical team for cross-reference assistance with compatible Schneider Electric encoder accessories.
