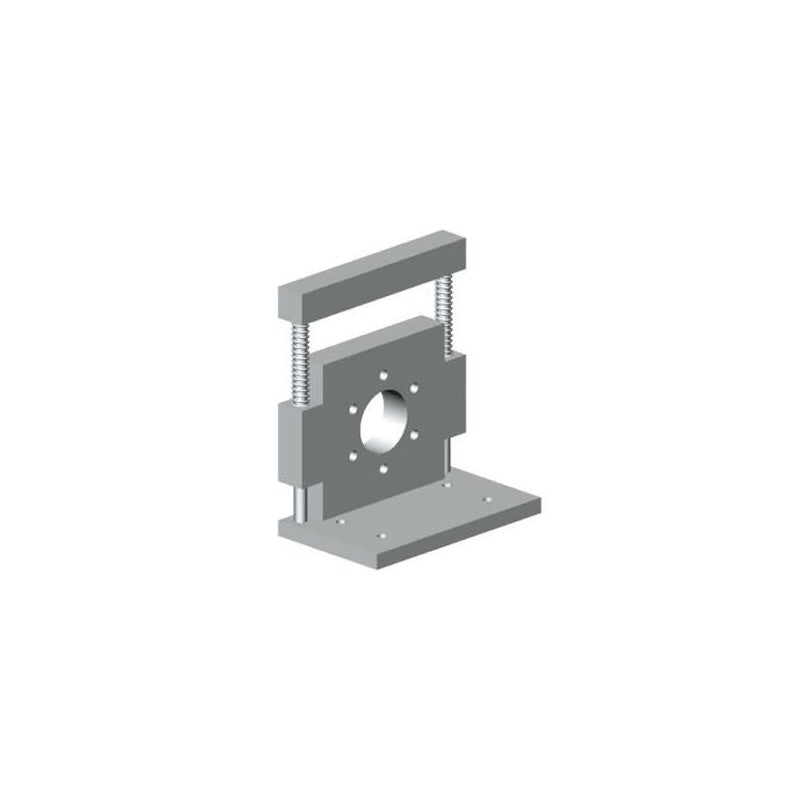

This Schneider Electric bracket with play compensator is designed for use with encoder 90 series devices. It facilitates precise mounting and alignment of rotary encoders in automated systems, ensuring accurate feedback for motion control applications. The integrated play compensator mechanism helps to mitigate backlash and mechanical play, contributing to improved system accuracy and repeatability.

Technical details

• Product Type: Mounting Bracket with Play Compensator
• Compatible Encoder Series: Encoder 90
• Manufacturer: Schneider Electric
• Functionality: Provides play compensation for encoder mounting
• Material: Typically constructed from durable industrial-grade materials for longevity in harsh environments. (Note: Specific material composition should be verified against manufacturer datasheet.)
• Mounting Interface: Designed to interface with standard encoder mounting patterns for the Encoder 90 series. (Note: Specific dimensions and bolt patterns should be verified against manufacturer datasheet.)
• Environmental Rating: Suitable for industrial environments. (Note: Specific IP rating or operating temperature range should be verified against manufacturer datasheet.)

Applications & compatibility

This play compensator bracket is essential for applications requiring high-precision position feedback from Schneider Electric Encoder 90 series devices. It is commonly found in servo motor feedback systems, robotic arm joints, automated assembly machines, and precision positioning equipment within industries such as automotive manufacturing, packaging, and material handling.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the XCCRE9RN or contact our technical team for cross-reference assistance with compatible Encoder 90 series components.
