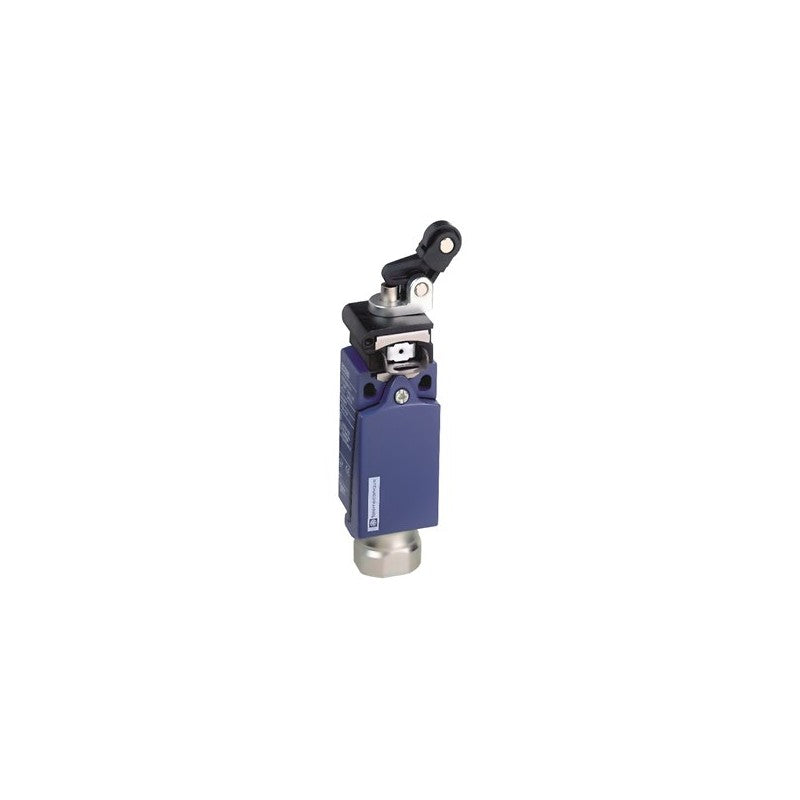

Schneider Electric's XCKD series limit switch is engineered for robust industrial environments, featuring a rotary head design. This specific model, the XCKD2109P16, incorporates a snap-action mechanism for reliable contact switching. It is configured with one normally closed (NC) and one normally open (NO) contact, suitable for basic control and interlocking functions in automated machinery.

Technical details

• Series: XCKD
• Actuator Type: Rotary head, without operating lever
• Contact Configuration: 1 Normally Closed (NC) + 1 Normally Open (NO)
• Switching Action: Snap-action
• Conduit Entry: M16
• Enclosure Material: Typically robust thermoplastic or metal, designed for industrial durability (verify with datasheet for exact material)
• Operating Temperature Range: Standard industrial range, consult manufacturer datasheet for precise specifications
• Electrical Rating: Standard AC-15 or DC-13 ratings apply, verify specific voltage and current limits with the manufacturer's datasheet for the XCKD2109P16 model.

Applications & compatibility

This limit switch is commonly employed in machine tool applications, packaging equipment, and material handling systems where precise position detection is required. Its durable construction and snap-action mechanism make it suitable for detecting the end of travel for moving parts, actuating safety interlocks, or signaling operational status on conveyor lines and robotic cells.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the XCKD2109P16 or contact our technical team for cross-reference assistance with compatible Schneider Electric limit switch components.
