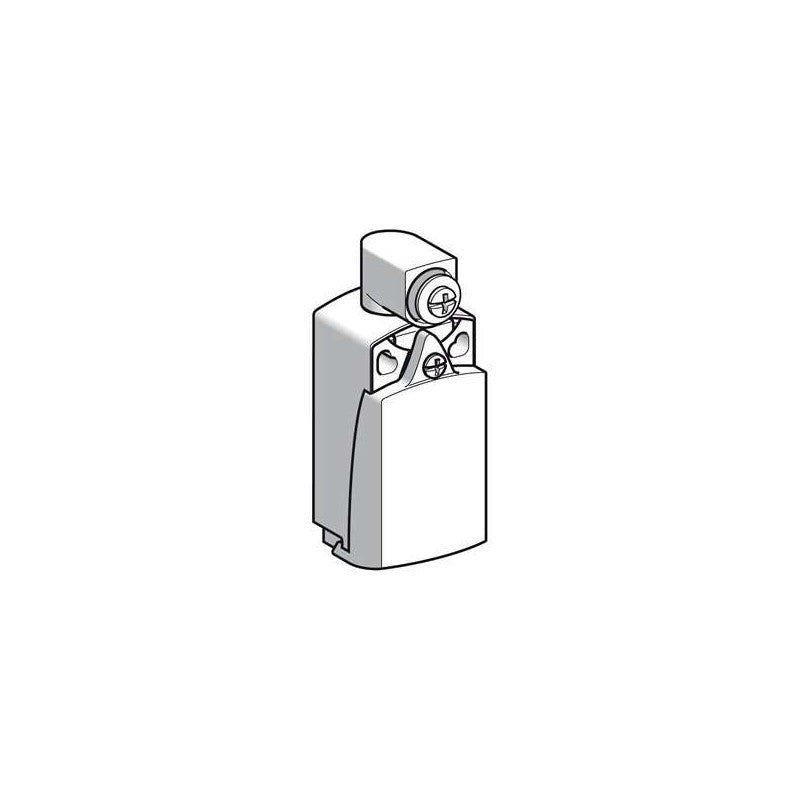

Schneider Electric's XCKD series limit switch, model XCKD2501P16, is designed for robust industrial control applications. This specific unit features a rotary head without an operating lever, offering a compact solution for machinery where space is a consideration. It provides a versatile 1 Normally Closed (NC) and 1 Normally Open (NO) contact configuration, suitable for a wide range of interlocking and signaling functions in automated systems.

Technical details

• Series: XCKD
• Actuator Type: Rotary head, without operating lever
• Contact Configuration: 1 NC + 1 NO (Normally Closed + Normally Open)
• Switching Action: Slow action
• Connection Type: M16 threaded entry for cable gland
• Enclosure Material: Typically robust plastic or metal for industrial environments (verify with datasheet)
• Operating Temperature Range: Standard industrial ranges (verify with datasheet)
• IP Rating: Typically IP65 or higher for dust and water resistance (verify with datasheet)

Applications & compatibility

The XCKD2501P16 limit switch is commonly employed in machine tool applications, material handling systems, and automated assembly lines. Its durable construction and reliable switching capabilities make it ideal for detecting the position of moving machine parts, such as doors, guards, or slides, ensuring safe operation and process control in demanding environments.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the XCKD2501P16 or contact our technical team for cross-reference assistance with compatible Schneider Electric control components.
