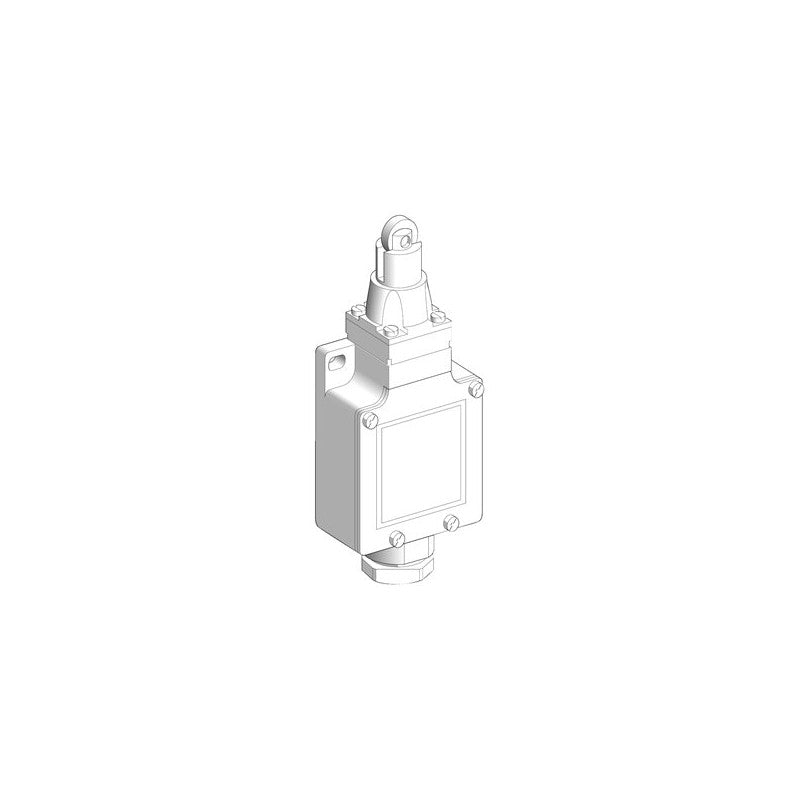

The Schneider Electric XCKL102H7 is a limit switch from the XCKL series, designed for robust industrial environments. This switch features a steel roller plunger actuator and a snap-action contact mechanism, providing reliable end-of-travel detection for automated machinery. It is configured with one normally closed (NC) and one normally open (NO) contact, suitable for a variety of control circuit applications.

Technical details

• Series: XCKL
• Actuator Type: Steel Roller Plunger
• Contact Configuration: 1NC + 1NO (Normally Closed + Normally Open)
• Switching Action: Snap Action
• Conduit Entry: 1/2" NPT
• Enclosure Material: Metal (implied by steel roller plunger and typical XCKL series construction)
• Operating Temperature Range: Consult manufacturer datasheet for specific range.
• Electrical Rating: Consult manufacturer datasheet for specific voltage and current ratings.

Applications & compatibility

This limit switch is commonly employed in machine tool applications, material handling systems, and assembly lines where precise end-of-travel or position sensing is critical. Its durable construction and snap-action mechanism ensure dependable operation in demanding industrial settings, making it suitable for integration into PLC-based control systems and other automation architectures.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the XCKL102H7 or contact our technical team for cross-reference assistance with compatible Schneider Electric automation components.
