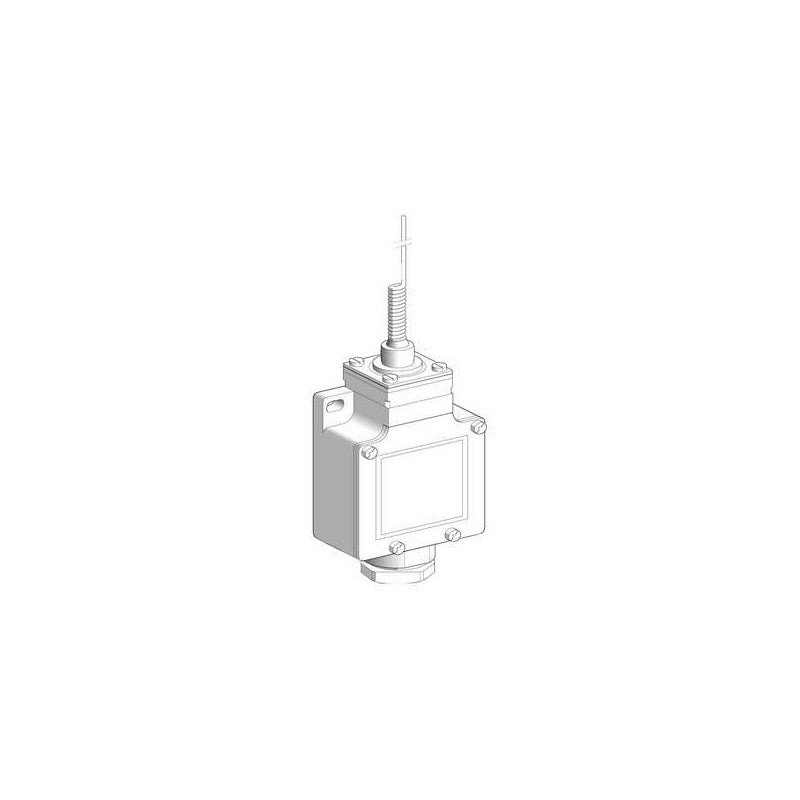

The Schneider Electric XCKL506 is a limit switch from the XCKL series, designed for robust industrial environments. This specific model features a "cats whisker" actuator, providing a long, flexible sensing element suitable for detecting the presence or absence of objects in a linear path. It is configured with a 1NC (normally closed) and 1NO (normally open) contact arrangement, offering versatile control logic capabilities.

Technical details

• Series: XCKL
• Actuator Type: Cats whisker (flexible rod)
• Contact Configuration: 1 Normally Closed (NC) + 1 Normally Open (NO)
• Contact Break Type: Slow-break
• Cable Entry: Cable gland
• Switching Function: Momentary
• Enclosure Material: Likely robust thermoplastic or metal (verify with datasheet)
• Operating Temperature Range: Typically -25°C to +70°C (verify with datasheet)

Applications & compatibility

This limit switch is commonly employed in machine tool applications, assembly lines, and material handling systems where precise end-of-travel detection or position sensing is required. Its flexible actuator makes it ideal for applications where the target object may not present a flat surface or where a sweeping action is needed to trigger the switch. It is compatible with standard industrial control circuits.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the XCKL506 or contact our technical team for cross-reference assistance with compatible Schneider Electric control components.
