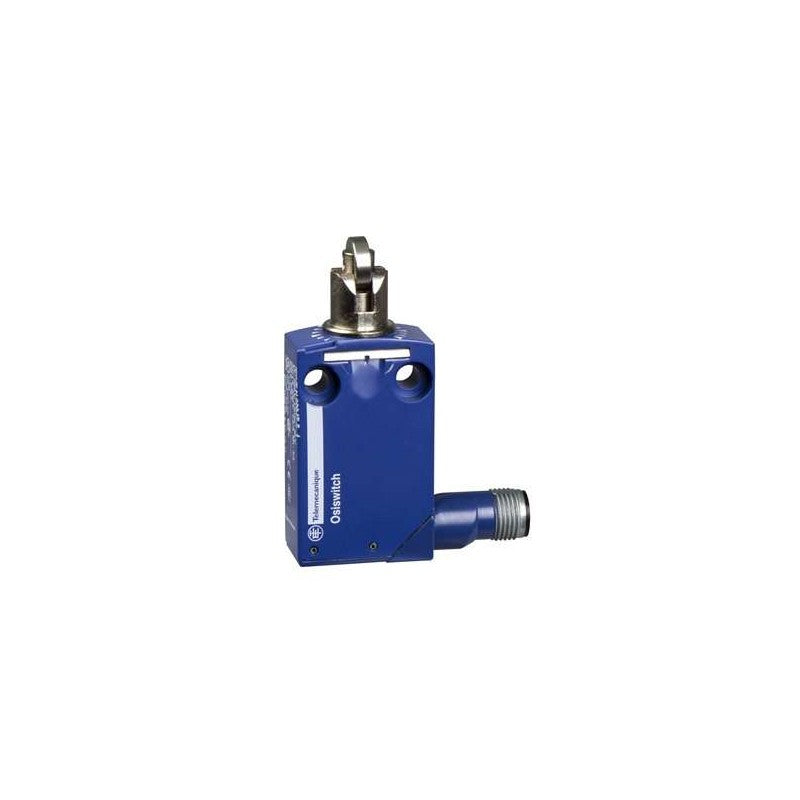

The Schneider Electric XCMD1656046 is a limit switch from the XC Standard series, designed for robust industrial environments. This specific model features a spring return roller plunger actuator and is configured with one normally open (NO) and one normally closed (NC) contact. It is commonly employed in machine tool applications and automated assembly lines where precise end-of-travel detection is critical.

Technical details

• Series: XC Standard
• Model Designation: XCM D
• Actuator Type: Spring Return Roller Plunger
• Contact Configuration: 1 NO + 1 NC (Normally Open + Normally Closed)
• Switching Capacity: Refer to manufacturer datasheet for specific electrical ratings (voltage, current, power).
• Enclosure Type: Refer to manufacturer datasheet for ingress protection (IP) rating and material specifications.
• Operating Temperature Range: Refer to manufacturer datasheet for environmental operating limits.
• Connection Type: Refer to manufacturer datasheet for terminal type or cable gland specifications.

Applications & compatibility

This limit switch is suitable for integration into control systems for packaging machinery, material handling equipment, and general automation tasks. Its durable construction and reliable contact arrangement make it a dependable choice for applications requiring positive mechanical actuation and feedback, such as detecting the position of moving machine parts or confirming the closure of safety guards.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the XCMD1656046 or contact our technical team for cross-reference assistance with compatible XC Standard components.
