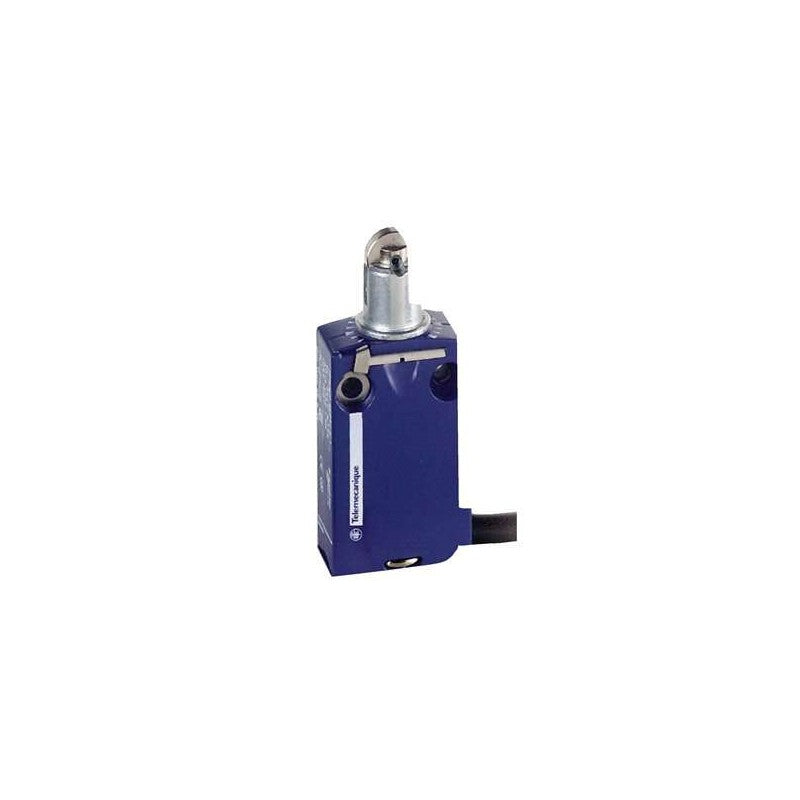

The Schneider Electric XCMD2102L03S96 is a standard limit switch from the XCM D series, designed for robust industrial environments. This switch features a spring return roller plunger actuator and is configured with one normally open (NO) and one normally closed (NC) contact. It is commonly employed in machine tool applications and automated assembly lines where precise position detection is critical.

Technical details

• Series: XCM D
• Actuator Type: Spring return roller plunger
• Contact Configuration: 1 NO + 1 NC
• Switching Capacity: For specific voltage and current ratings, please consult the manufacturer's datasheet. The part number does not explicitly define these parameters.
• Operating Temperature Range: Specific operating temperature range should be verified against the Schneider Electric datasheet for the XCMD2102L03S96.
• Enclosure Material: Typically constructed from durable materials suitable for industrial settings; refer to the datasheet for exact specifications.
• Mounting Type: Standard mounting configurations for limit switches; verify compatibility with your system's mounting requirements.
• Ingress Protection Rating: Consult the manufacturer's datasheet for the specific IP rating of this model.

Applications & compatibility

This limit switch is suitable for a wide range of industrial automation tasks, including end-of-travel detection on linear actuators, gate position sensing, and safety interlocks on machinery. It is compatible with control systems requiring discrete digital inputs and can be integrated into PLC-based automation architectures found in manufacturing, material handling, and process control applications.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the XCMD2102L03S96 or contact our technical team for cross-reference assistance with compatible XCM D series components.
