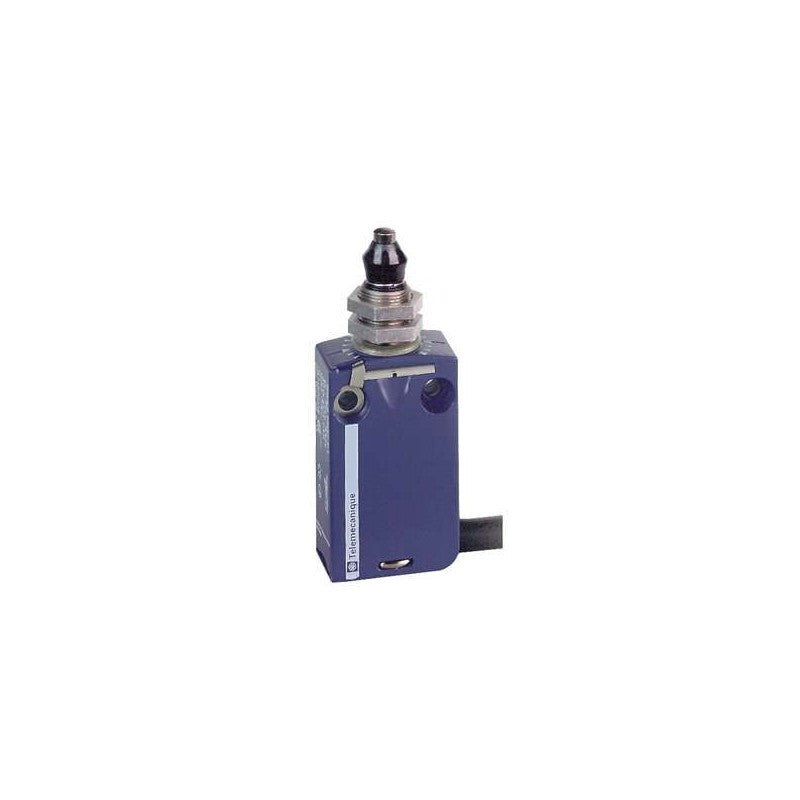

The Schneider Electric XCMD21G1L1 is a limit switch from the XCMD series, designed for robust industrial environments. This switch features an M16 threaded body with a nitrile booted end plunger, providing reliable actuation in demanding conditions. It is configured with one normally closed (NC) and one normally open (NO) contact, utilizing a snap-action mechanism for precise switching.

Technical details

• Series: XCMD
• Actuator Type: End plunger with nitrile boot
• Thread Size: M16
• Contact Configuration: 1 NC + 1 NO
• Switching Mechanism: Snap-action
• Cable Entry: M16 (implied by M16 booted end plunger, verify with datasheet)
• Connection Type: Screw terminals (typical for this series, verify with datasheet)
• Pre-travel: 10 mm (typical for this series, verify with datasheet)

Applications & compatibility

This limit switch is suitable for detecting the position of moving machine parts in applications such as packaging machinery, material handling systems, and assembly lines. Its durable construction and snap-action contacts ensure reliable operation in environments where precise end-of-travel detection is critical.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the XCMD21G1L1 or contact our technical team for cross-reference assistance with compatible Schneider Electric automation components.
