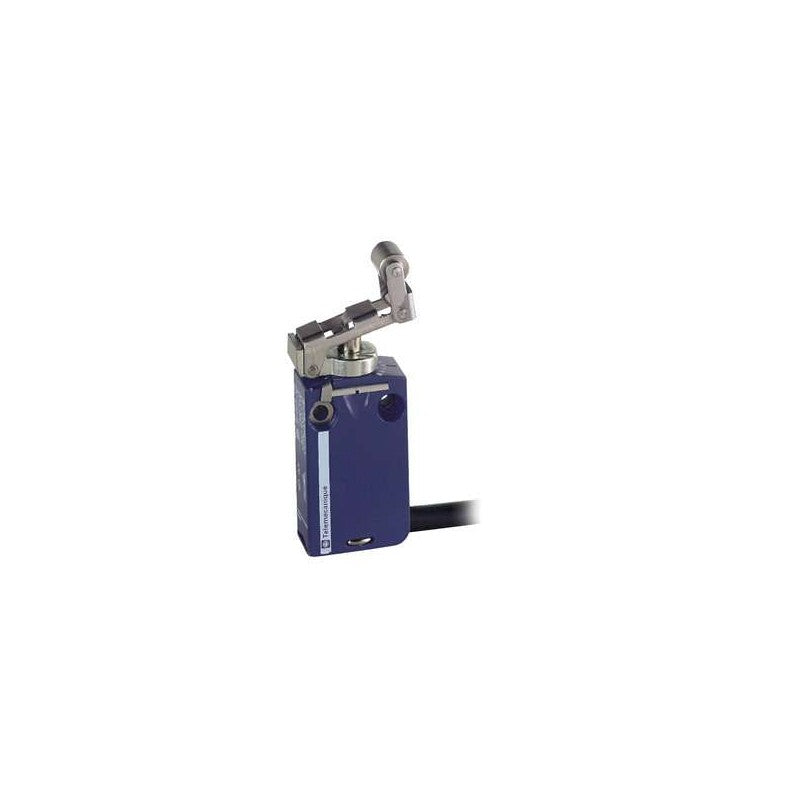

The Schneider Electric XCMD2524L1 is a limit switch from the XCMD series, designed for robust industrial environments. This specific model features a steel roller lever plunger with a retractable mechanism, offering precise actuation for position detection in automated machinery. It incorporates a 1 normally closed (NC) and 1 normally open (NO) contact configuration, operating on a slow-action switching principle.

Technical details

• Series: XCMD
• Actuator Type: Steel roller lever plunger, retractable
• Contact Configuration: 1 NC + 1 NO
• Switching Action: Slow action
• Cable Entry: M12 connector (implied by L1 suffix, verify against datasheet)
• Pre-travel: 10 mm (typical for this actuator type, verify against datasheet)
• Total travel: 22 mm (typical for this actuator type, verify against datasheet)
• Operating Force: 15 N (typical for this actuator type, verify against datasheet)

Applications & compatibility

This limit switch is suitable for integration into control systems for machinery on packaging lines, material handling equipment, and assembly stations. Its durable construction and reliable switching make it ideal for applications requiring accurate end-of-travel detection or interlock functions in demanding industrial settings.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the XCMD2524L1 or contact our technical team for cross-reference assistance with compatible XCMD series components.
