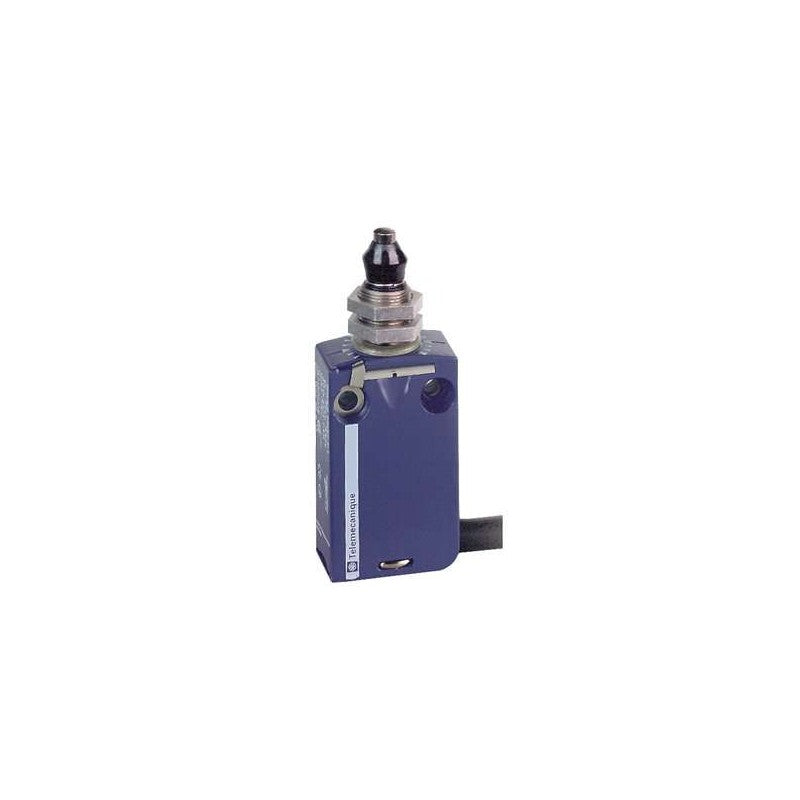

The Schneider Electric XCMD25G1L1 is a limit switch from the XCMD series, designed for robust industrial environments. This specific model features an M16 booted nitrile end plunger actuator and is configured with one normally closed (NC) and one normally open (NO) contact. It operates on a slow-action switching principle, suitable for applications requiring precise position detection and control.

Technical details

• Series: XCMD
• Actuator Type: End plunger with M16 threaded body
• Actuator Material: Booted nitrile
• Contact Configuration: 1 Normally Closed (NC) + 1 Normally Open (NO)
• Switching Action: Slow action
• Connection: 1 meter pre-wired cable
• Enclosure Rating: Verify with manufacturer datasheet for specific IP and NEMA ratings.
• Electrical Ratings: Verify with manufacturer datasheet for specific voltage, current, and power ratings.

Applications & compatibility

This limit switch is commonly employed in machine tool applications, material handling systems, and automated assembly lines where reliable end-of-travel or position sensing is critical. Its durable construction and specific contact arrangement make it suitable for integration into control circuits for packaging machinery, conveyor systems, and robotic work cells.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the XCMD25G1L1 or contact our technical team for cross-reference assistance with compatible XCMD series components.
