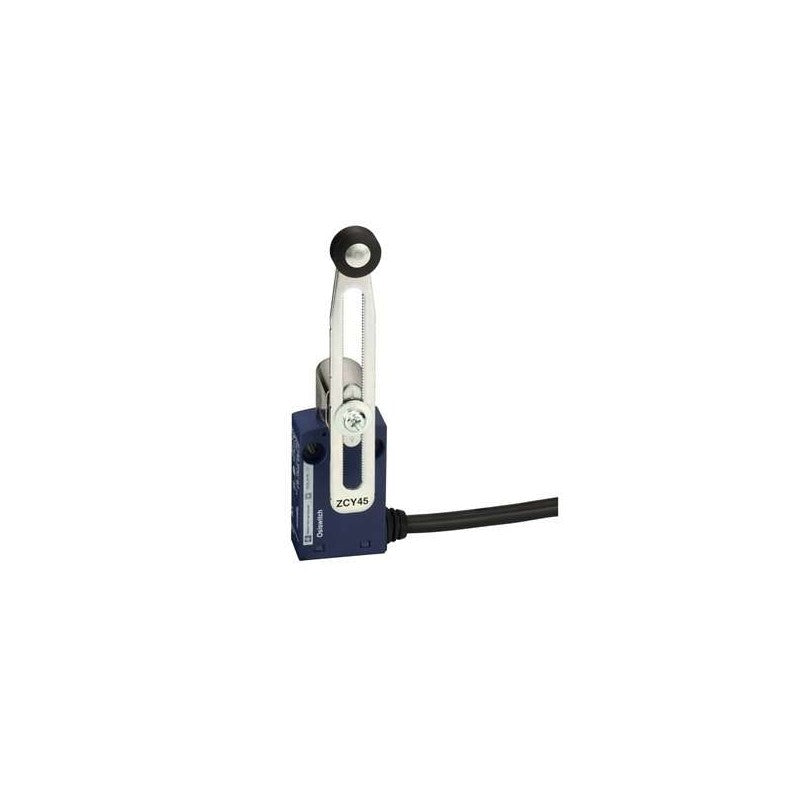

Part of the Schneider Electric XCMN series, this limit switch is designed for robust industrial environments. It features a thermoplastic housing and a variable-length roller lever actuator, suitable for detecting the presence or position of moving machine parts. The switch configuration includes one normally closed (NC) and one normally open (NO) contact, utilizing a snap-action mechanism for reliable switching.

Technical details

• Series: XCMN
• Actuator Type: Thermoplastic roller lever, variable length
• Contact Configuration: 1 Normally Closed (NC) + 1 Normally Open (NO)
• Switching Mechanism: Snap-action
• Housing Material: Thermoplastic
• Cable Entry: Pre-wired with 1-meter cable
• Electrical Rating: Specific voltage and current ratings should be verified against the manufacturer's datasheet for precise application compatibility.
• Ingress Protection: Specific IP rating should be verified against the manufacturer's datasheet.

Applications & compatibility

This limit switch is commonly employed in automated manufacturing processes, including assembly lines, material handling systems, and machine tool applications. Its durable construction and versatile actuator make it suitable for detecting end-of-travel limits, interlocks, and position feedback on various types of industrial machinery.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the XCMN2145L1 or contact our technical team for cross-reference assistance with compatible Schneider Electric components.
