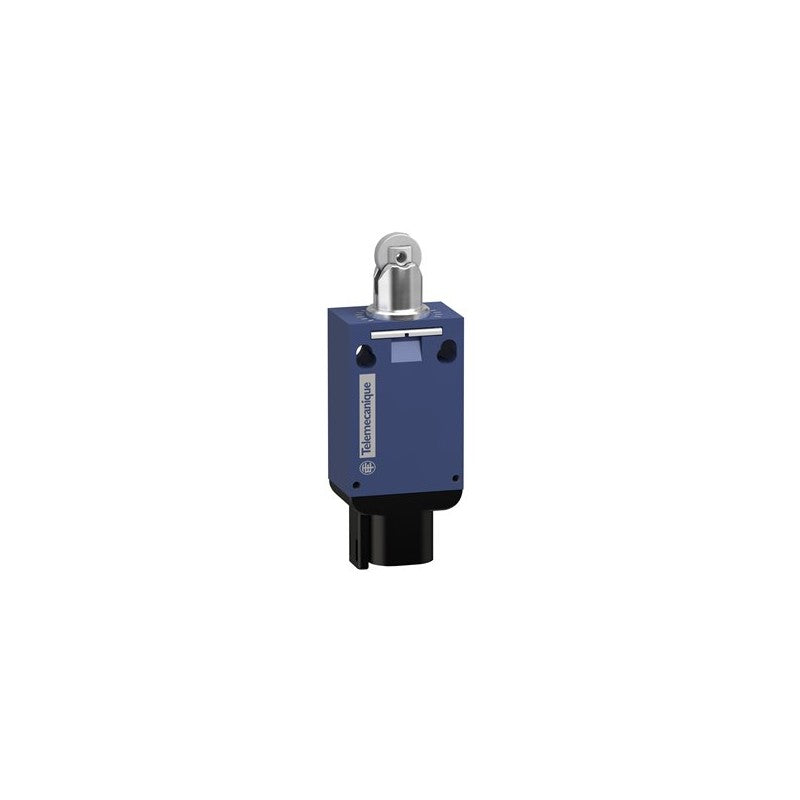

The Schneider Electric XCMD limit switch is engineered for robust industrial environments, featuring a durable steel roller plunger actuator. This specific model, part of the XCMD series, is configured with a 1 Normally Closed (NC) and 1 Normally Open (NO) contact arrangement, utilizing a snap-action switching mechanism for reliable operation. It is designed for integration into control systems requiring precise position sensing and signaling.

Technical details

• Actuator Type: Steel Roller Plunger
• Contact Configuration: 1 NC / 1 NO (Normally Closed / Normally Open)
• Switching Mechanism: Snap-Action
• Connection Type: DT04 4-Pin Connector
• Series: XCMD
• Enclosure Material: Metal (implied by "steel roller plunger" and common for this series)
• Operating Temperature Range: Consult manufacturer datasheet for specific environmental ratings.
• Electrical Rating: Consult manufacturer datasheet for specific voltage and current ratings.

Applications & compatibility

This Schneider Electric limit switch is commonly employed in automated machinery and control panels across various industries, including manufacturing, material handling, and assembly lines. Its snap-action mechanism and durable construction make it suitable for applications such as detecting the end-of-travel for machine components, confirming the position of gates or doors, and acting as a safety interlock switch in packaging equipment and CNC machinery.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the XCMV2102D44 or contact our technical team for cross-reference assistance with compatible XCMD series components.
