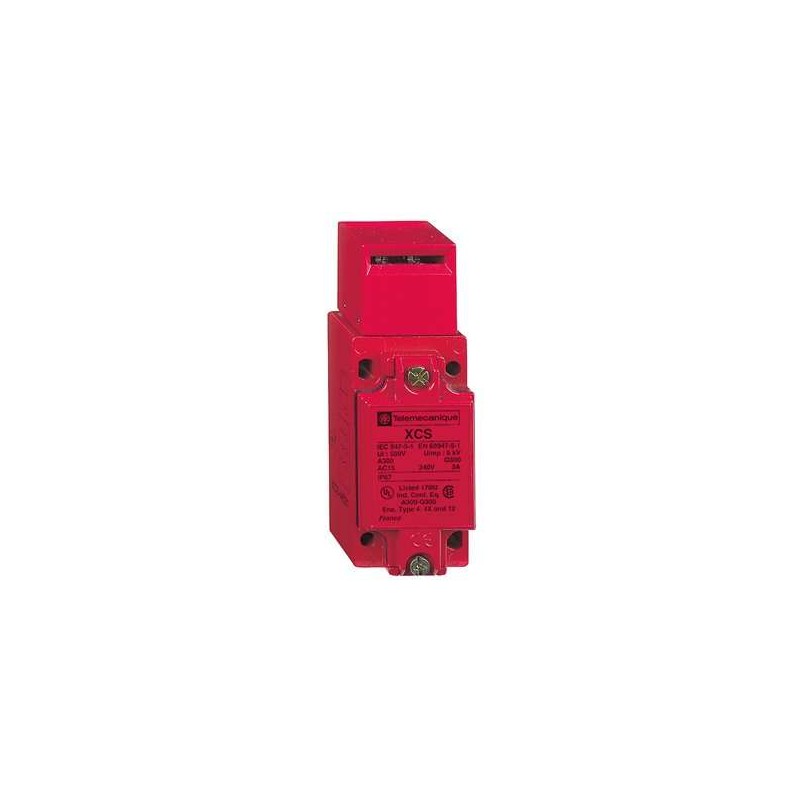

The Schneider Electric XCSA502 is a metal safety switch designed for machine guarding applications. This unit features a slow-break contact configuration with one normally closed (NC) and two normally open (NO) contacts, providing essential safety interlock functionality. It includes one entry tapped for M20 conduit connections, facilitating straightforward installation within industrial control panels.

Technical details

• Series: XCSA Safety Switches
• Contact Configuration: 1 NC (Normally Closed) + 2 NO (Normally Open)
• Contact Type: Slow Break
• Actuator Type: Keyed/Lever Actuator (implied by safety switch function)
• Enclosure Material: Metal
• Conduit Entry: 1 x M20 tapped entry
• Operating Principle: Mechanical interlock for safety circuits
• Voltage Rating: Verify with manufacturer datasheet for specific electrical ratings (e.g., AC-15, DC-13).

Applications & compatibility

This Schneider Electric safety switch is commonly employed in applications requiring robust machine safety interlocks, such as on industrial machinery, packaging equipment, and automated assembly lines. It is designed to ensure that hazardous machine movements are stopped when a guard or access point is opened, preventing operator injury.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the XCSA502 or contact our technical team for cross-reference assistance with compatible Schneider Electric safety components.
