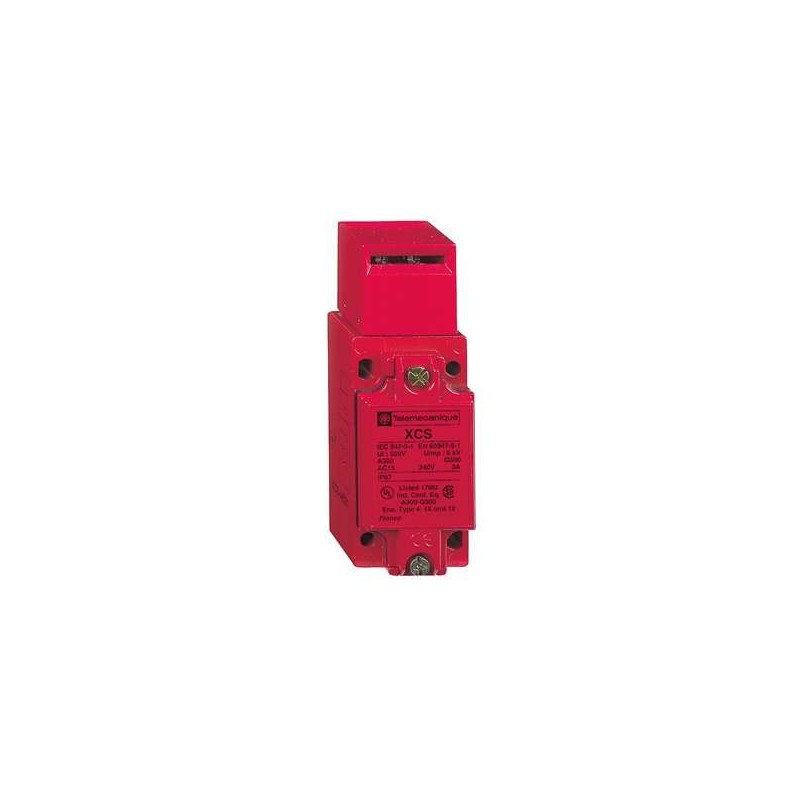

Designed for machine safety applications, the Schneider Electric XCSA503 is a metal-bodied safety switch from the Telemecanique XCS series. This switch is configured with one normally closed (NC) contact and two normally open (NO) contacts, utilizing a slow-break switching mechanism. It features a single entry point tapped for 1/2" NPT conduit, facilitating straightforward installation in industrial environments.

Technical details

• Series: Telemecanique Safety Switches XCS
• Model Designation: XCSA
• Contact Configuration: 1 NC (Normally Closed) + 2 NO (Normally Open)
• Contact Type: Slow Break
• Enclosure Material: Metal
• Conduit Entry: 1 x 1/2" NPT tapped entry
• Actuator Type: Compatible with various XCS actuators (actuator sold separately)
• Operating Voltage: Verify with manufacturer datasheet for specific voltage and current ratings.

Applications & compatibility

The XCSA503 safety switch is integral to machine guarding systems, ensuring operator safety by detecting the opening of protective doors or enclosures. It is commonly deployed in applications such as packaging machinery, assembly lines, CNC equipment, and robotic cells where immediate shutdown upon access is critical.
