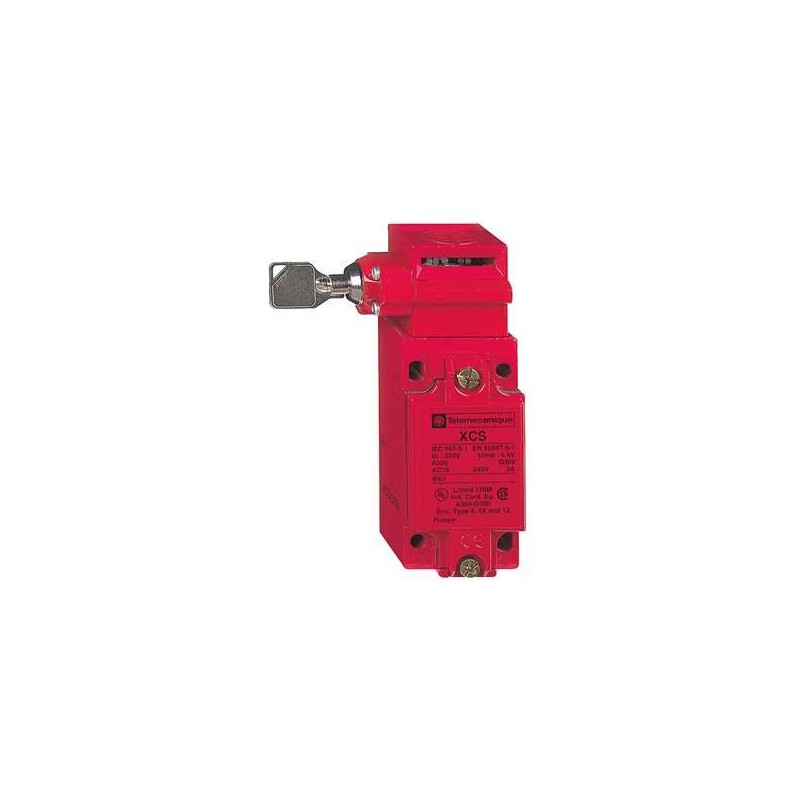

The Schneider Electric XCSC501 is a metal safety switch designed for machine guarding applications. This specific model features a slow-break contact configuration, comprising one normally closed (NC) and two normally open (NO) contacts. It includes a single entry point tapped for Pg 13 conduit, facilitating straightforward wiring and integration into industrial control panels.

Technical details

• Series: XCSC Safety Switch
• Contact Configuration: 1 NC (Normally Closed) + 2 NO (Normally Open)
• Contact Type: Slow Break
• Enclosure Material: Metal
• Conduit Entry: 1 entry tapped Pg 13
• Actuator Type: Keyed (typically requires a separate actuator, sold separately)
• Operating Voltage: Verify with manufacturer datasheet for specific voltage ratings (e.g., 24VDC, 120VAC, 240VAC).
• Current Rating: Verify with manufacturer datasheet for specific current ratings.

Applications & compatibility

This safety switch is commonly employed in industrial automation environments to ensure personnel safety during machine operation. Applications include safeguarding access points on machinery such as packaging lines, CNC machines, robotic cells, and assembly equipment where interlock functionality is critical to prevent operation when guards are open.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the XCSC501 or contact our technical team for cross-reference assistance with compatible Schneider Electric safety components.
