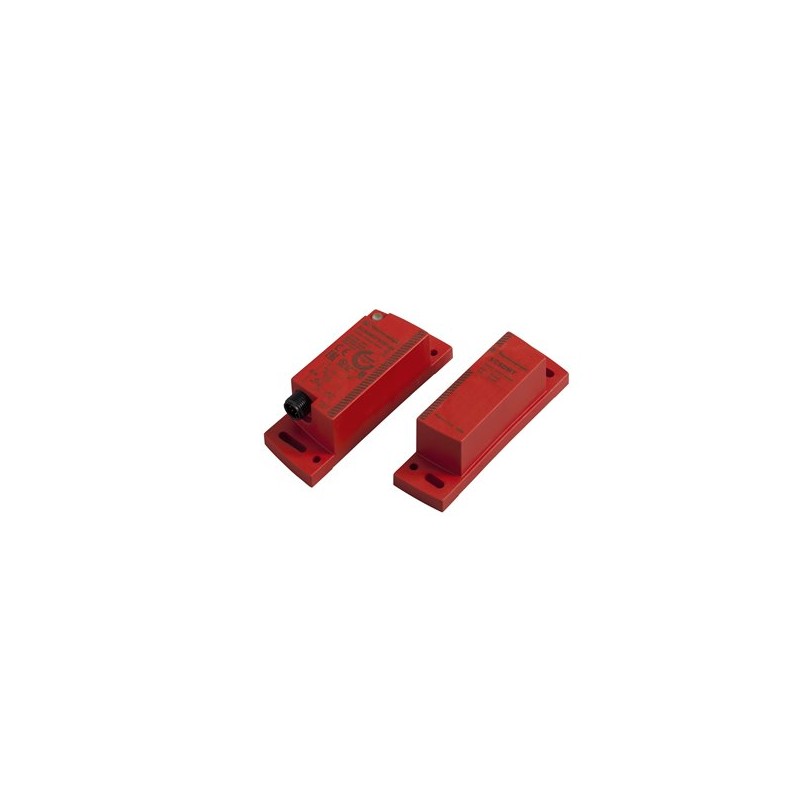

The Schneider Electric XCSDM3791M12 is a coded magnetic safety switch designed for machine guarding applications. As part of the XCSDM series, this switch utilizes magnetic sensing technology to detect the position of guard doors or access points. It is engineered to meet stringent safety integrity levels, providing reliable feedback for safety control systems.

Technical details

• Series: XCSDM
• Safety Integrity Level (SIL): SIL 2 certified, indicating a high level of functional safety performance.
• Output Type: Features 2 PNP solid-state outputs for transmitting safety status signals to a safety controller.
• Actuator Type: Coded magnetic actuator, requiring a specific magnet to operate, preventing bypass or manipulation.
• Connection: Equipped with an M12 connector for straightforward electrical connection.
• Switching Principle: Non-contact magnetic sensing technology.
• Operating Principle: Designed to detect the presence or absence of the coded magnetic actuator.
• Enclosure Material: Typically constructed from robust materials suitable for industrial environments.

Applications & compatibility

This coded magnetic safety switch is commonly employed in industrial automation environments where reliable guard monitoring is essential. Applications include safeguarding access points on packaging machinery, robotic cells, assembly lines, and material handling equipment. Its SIL 2 rating makes it suitable for systems requiring a high degree of safety assurance.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the XCSDM3791M12 or contact our technical team for cross-reference assistance with compatible Schneider Electric safety components.
