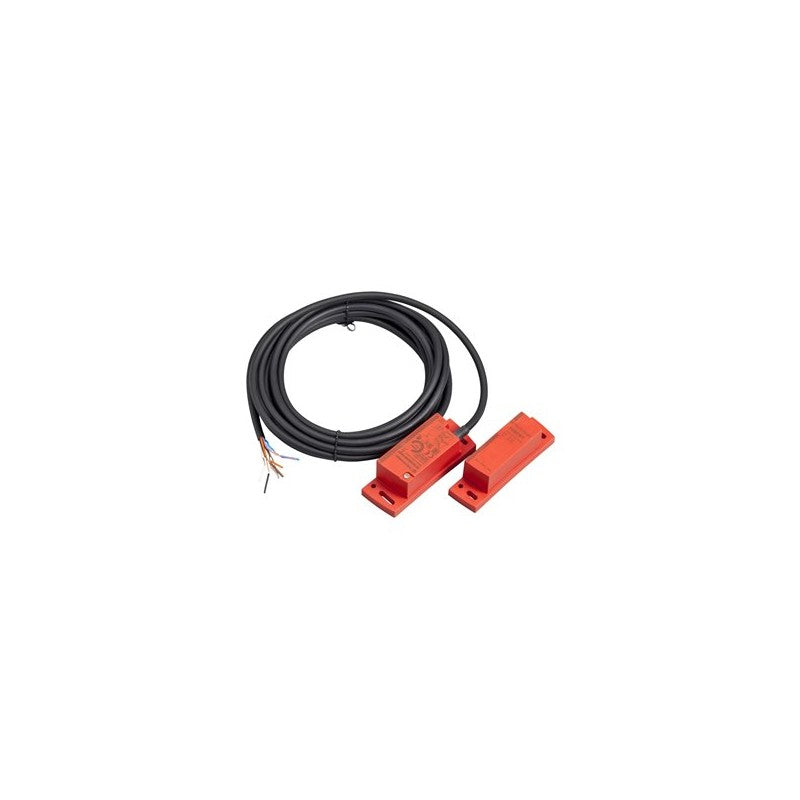

The Schneider Electric XCSDM480102 is a coded magnetic safety switch designed for machine guarding applications requiring high levels of safety integrity. As part of the XCSDM series, this switch utilizes magnetic sensing technology to detect the position of safety guards, providing reliable interlocking functionality. It is engineered to meet stringent safety standards, making it suitable for integration into safety circuits on automated machinery.

Technical details

• Safety Integrity Level (SIL): SIL 3
• Output Type: 2 PNP safety outputs
• Connection: Integrated 2-meter cable
• Actuator Type: Coded magnetic system
• Series: XCSDM
• Operating Principle: Magnetic detection of guard position
• Switching Frequency: Consult manufacturer datasheet for specific rating
• Enclosure Rating: Consult manufacturer datasheet for specific rating

Applications & compatibility

This coded magnetic safety switch is commonly employed in industrial automation environments where personnel safety is paramount. Applications include protecting access points on packaging machinery, robotic cells, assembly lines, and material handling equipment. Its coded nature prevents simple bypass, ensuring that safety guards must be properly closed and secured before machinery can operate.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the XCSDM480102 or contact our technical team for cross-reference assistance with compatible Schneider Electric safety components.
