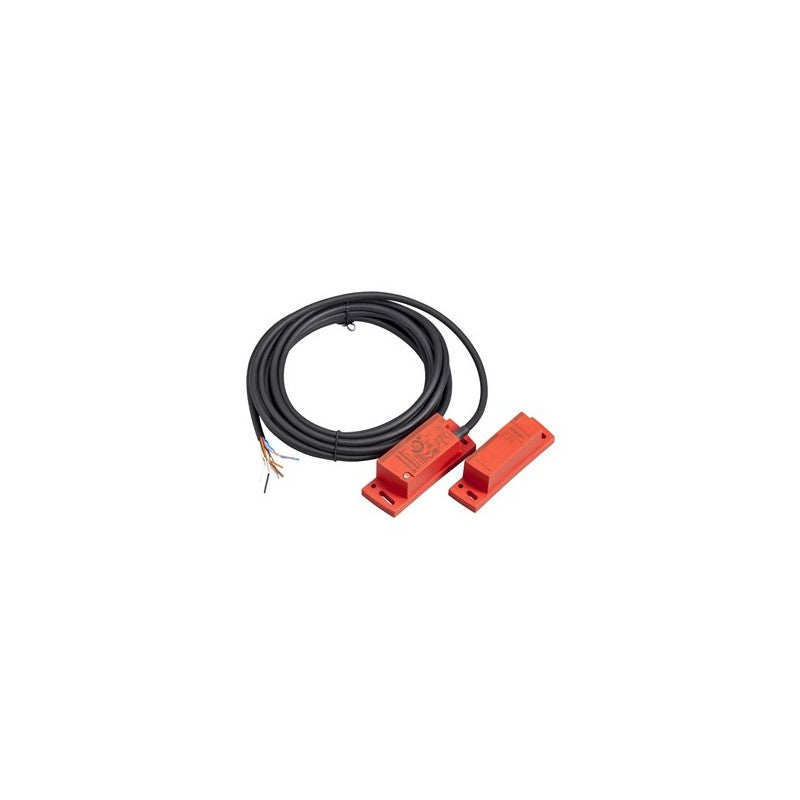

The Schneider Electric XCSDM4 coded magnetic safety switch is designed for machine guarding applications requiring a high level of safety integrity. This unit is part of the XCSDM series, engineered to detect the position of guard doors and other movable machine parts. It features a SIL 3 safety rating, indicating its suitability for the most demanding safety functions.

Technical details

• Safety Integrity Level (SIL): SIL 3
• Output Type: 2 PNP safety outputs
• Connection: Integrated 5-meter cable
• System Type: Coded magnetic safety system
• Actuator Type: Requires a specific coded magnetic actuator (sold separately)
• Enclosure Material: Durable plastic housing suitable for industrial environments
• Operating Principle: Non-contact detection via magnetic field and unique coding
• Switching Frequency: Consult manufacturer datasheet for specific operational limits

Applications & compatibility

This XCSDM4 safety switch is ideal for protecting personnel on machinery where accidental startup could cause injury. Common applications include packaging machines, assembly lines, robotic cells, and any automated equipment with moving parts that require safety interlocks. It is designed to integrate with safety relays and safety PLC modules to build a complete safety system.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the XCSDM4 or contact our technical team for cross-reference assistance with compatible safety components.
