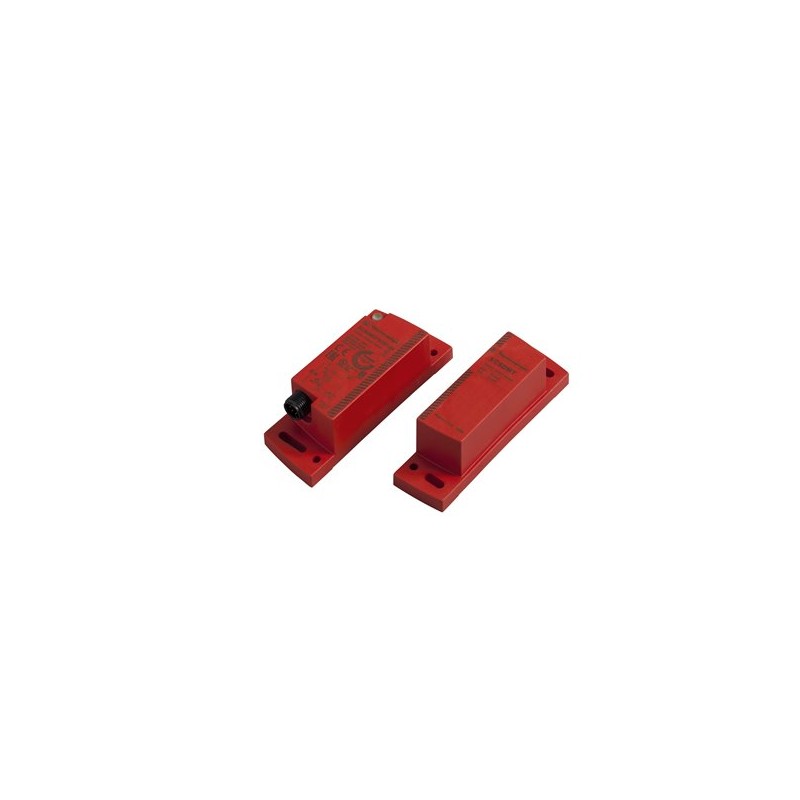

The Schneider Electric XCSDM4801M12 is a coded magnetic safety switch from the XCSDM series, designed for machine guarding applications. This switch features a SIL 3 safety rating, indicating a high level of functional safety. It is equipped with two PNP safety outputs and a standard M12 connector for straightforward integration into control systems.

Technical details

• Series: XCSDM
• Safety Integrity Level (SIL): SIL 3
• Output Type: 2 x PNP safety outputs
• Connector Type: M12 connector
• Switching Technology: Coded magnetic system
• Actuator Type: Requires a specific coded actuator (sold separately)
• Operating Principle: Non-contact detection of guard position
• Enclosure Material: Durable plastic housing suitable for industrial environments

Applications & compatibility

This safety switch is commonly employed in applications requiring robust and tamper-resistant guard monitoring, such as on packaging machinery, robotic cells, and automated assembly lines. Its SIL 3 rating makes it suitable for high-risk machine guarding scenarios where personnel safety is paramount. The M12 connector ensures compatibility with a wide range of safety relays and control modules.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the Schneider Electric XCSDM4801M12 or contact our technical team for cross-reference assistance with compatible safety components.
