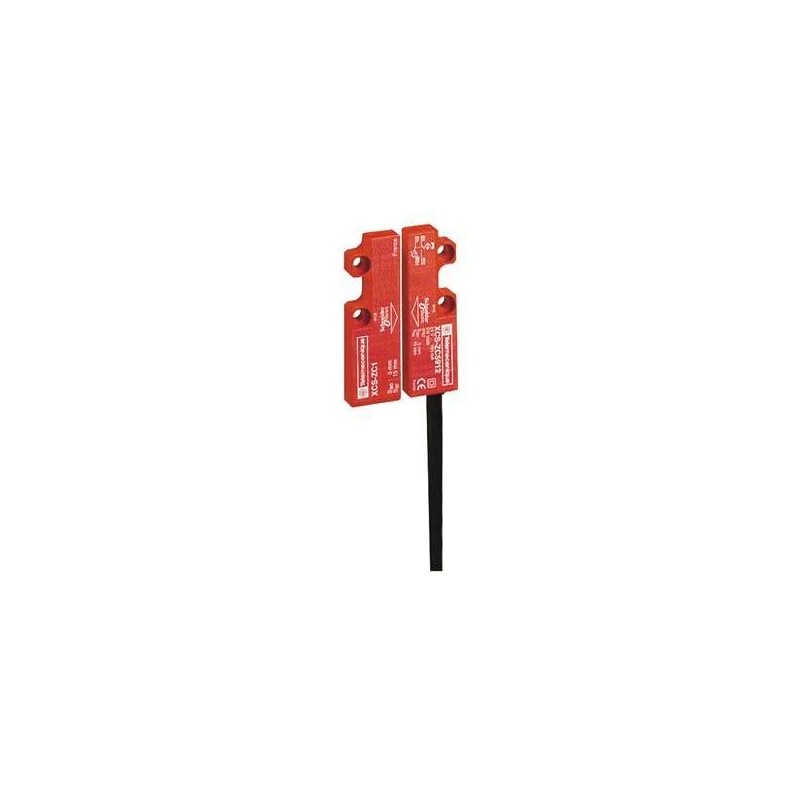

The Schneider Electric XCSDMC series coded magnetic switch is designed for safety interlock applications, commonly found in machine guarding and access control systems. This specific model, the XCSDMC59010, features a staggered contact configuration, providing one normally closed (NC) and one normally open (NO) contact. Its robust construction ensures reliable operation in demanding industrial environments.

Technical details

• Series: XCSDMC Coded Magnetic Switches
• Contact Configuration: 1 NC (Normally Closed) + 1 NO (Normally Open)
• Actuator Type: Staggered
• Cable Length: 10 meters
• Switching Technology: Coded Magnetic
• Operating Principle: Non-contact detection
• Safety Function: Interlocking and guard monitoring
• Enclosure Material: Durable industrial-grade plastic

Applications & compatibility

This XCSDMC coded magnetic switch is ideal for safeguarding access points on machinery such as packaging machines, robotic cells, and assembly lines. It is compatible with safety relays and controllers that accept standard NC/NO contact inputs, ensuring the machine stops when a guard is opened. Its 10-meter cable length offers flexibility in installation across various machine layouts.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the XCSDMC59010 or contact our technical team for cross-reference assistance with compatible Schneider Electric safety components.
