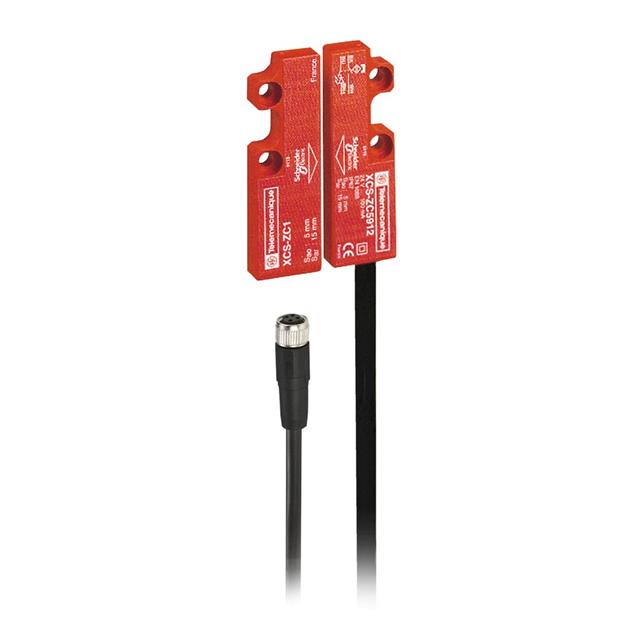

The Schneider Electric XCSDMC590L01M8 is a coded magnetic safety switch designed for machine guarding applications. As part of the XCSDMC series, this switch utilizes magnetic sensing technology to detect the position of a guard or door. It features a specific contact configuration of 1 Normally Closed (NC) and 1 Normally Open (NO) contact, providing a standard safety interlock function.

Technical details

• Series: XCSDMC Coded Magnetic Switch
• Contact Configuration: 1 NC (Normally Closed) + 1 NO (Normally Open)
• Actuator Type: Staggered
• Connection Type: M8 connector
• Cable Length: 0.15 meters (0.15m)
• Switching Technology: Magnetic sensing
• Safety Function: Guard monitoring and interlocking
• Enclosure Rating: Verify with manufacturer datasheet for specific IP and NEMA ratings.

Applications & compatibility

This coded magnetic switch is commonly employed in industrial automation environments where reliable guard monitoring is essential. Applications include safety circuits for packaging machinery, assembly lines, robotic cells, and other automated equipment requiring interlocks to prevent operation when guards are open. Its M8 connector and short cable facilitate integration into compact machine designs.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the XCSDMC590L01M8 or contact our technical team for cross-reference assistance with compatible Schneider Electric safety components.
