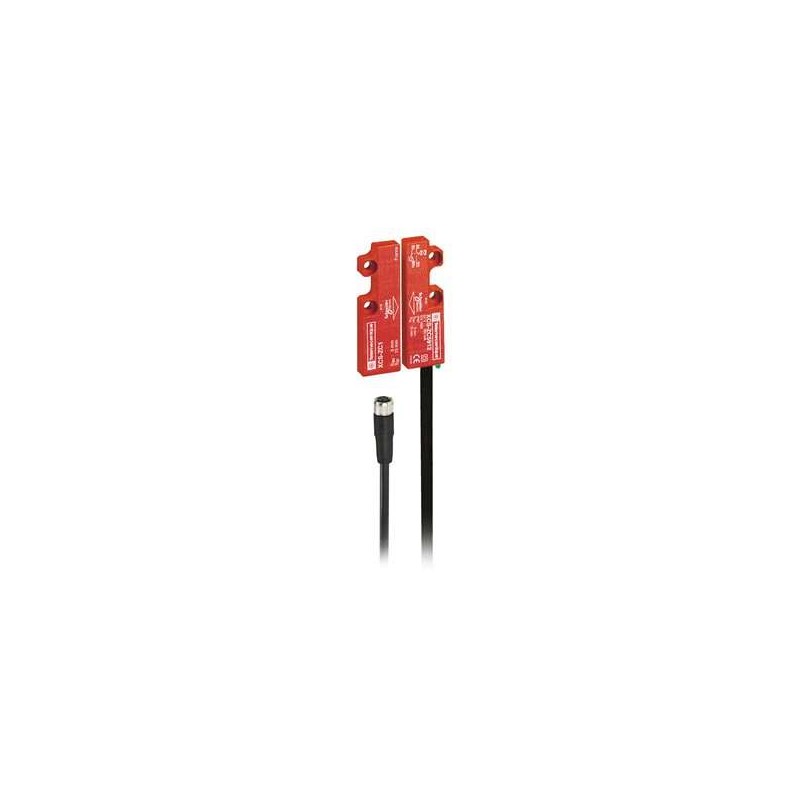

The Schneider Electric XCSDMC591L01M8 is a coded magnetic safety switch designed for machine guarding applications. As part of the XCSDMC series, this switch utilizes magnetic sensing technology to detect the position of guard doors or access points. It features a staggered contact configuration, providing one normally closed (NC) and one normally open (NO) contact for safety circuit integration.

Technical details

• Series: XCSDMC
• Contact Configuration: 1 NC + 1 NO (staggered)
• Actuator Type: Coded Magnetic
• Connection Type: M8 connector
• Cable Length: 0.15 meters
• Switching Principle: Magnetic detection
• Safety Function: Guard monitoring
• Enclosure Rating: Verify with manufacturer datasheet for specific IP and NEMA ratings.

Applications & compatibility

This coded magnetic safety switch is commonly employed in industrial automation environments to ensure personnel safety during machine operation. Applications include safeguarding access points on packaging machinery, robotic cells, CNC machines, and assembly lines where reliable guard position detection is critical. Its M8 connector and short cable facilitate integration into compact control panels.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the XCSDMC591L01M8 or contact our technical team for cross-reference assistance with compatible Schneider Electric safety components.
