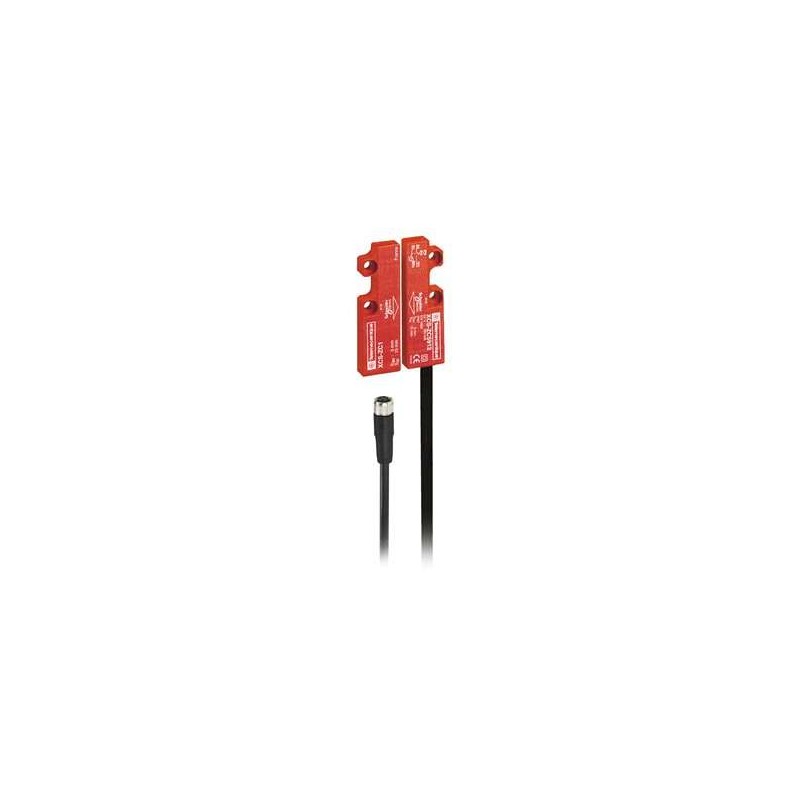

The Schneider Electric XCSDMC790L01M8 is a coded magnetic safety switch designed for machine guarding applications. As part of the XCSDMC series, this switch utilizes magnetic sensing technology to detect the position of guard doors or access points. Its staggered contact configuration and M8 connector make it suitable for integration into various industrial automation systems requiring reliable safety interlocks.

Technical details

• Series: XCSDMC Coded Magnetic Switch
• Contact Configuration: 2 Normally Closed (NC) safety contacts
• Actuator Type: Staggered
• Connection Type: M8 connector
• Cable Length: 0.15 meters
• Switching Principle: Magnetic sensing
• Safety Function: Guard monitoring and interlock
• Enclosure Rating: Please verify with manufacturer datasheet for specific IP and NEMA ratings.

Applications & compatibility

This coded magnetic safety switch is commonly employed in applications where personnel safety is paramount, such as on packaging machinery, robotic cells, and automated assembly lines. It provides a reliable method for ensuring that hazardous machine operations cease when a protective guard is opened, preventing access during dangerous cycles.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the XCSDMC790L01M8 or contact our technical team for cross-reference assistance with compatible Schneider Electric safety components.
